Description

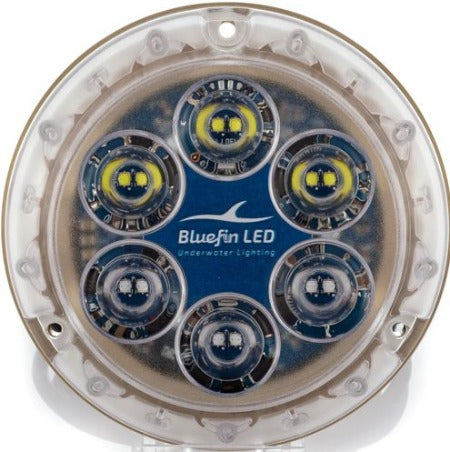

The Bluefin P12 are super powerful yet ultra compact surface mounted underwater lights suitable for boats up to approx 20 metres (65Ft). They provide a class-leading 6200 fixture lumens in a super compact housing. The LED unit is fully waterproof sealed in high impact optical polymer. The compact low profile design is suitable for transom and side mounting on most boats. Simple installation with one small 13mm cable entry hole and 3 x fastening screws. Screws, waterproof fuse holder & fuse are provided and a template & detailed installation manual is included in the box. 2 year warranty. The P12 have a bronze base and they are multi-voltage - suit both 1 2v & 24v.
Super powerful 6,200 fixture lumens light output. Max lamp lumens 9,000
Surface mounting fully waterproof sealed in 3mm optical grade polymer lens
Suits boats to approx 20 metre (65 Ft) length
Very simple installation with just I small cable entry hole and 3 x screws
Protection - under/over voltage - reverse polarity - thermal - hydro block
Typical LED life expectancy 50,000 hours
Light depth I 8mm. Light width 11 0mm.
Wiring hole 13mm diameter. Cable length 1.8 metre
60 degree beam angle. Integral driver
Supplied with waterproof fuse holder, fuse, S/S screws & installation manual
Solid AB2 bronze base or aluminium base in cobalt blue only
Suitable for both above and below waterline mounting
Control the lights via a simple toggle switch or optional Bluefin rocker switch
3 LED colours available - diamond white, cobalt blue & emerald green
2 year limited warranty. All installation instructions must be adhered to.
Multi-voltage suits both 12v & 24v systems
12 volt 4.6 amp. 24v 2.35 amp. Max wattage 55 watts
