Description

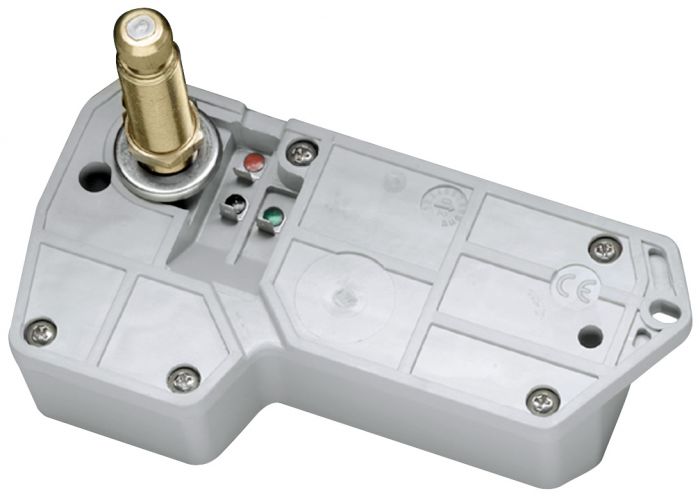

The AFI 1000 heavy duty wiper motor is fully waterproof with a thermoplastic cover and powers wiper arm & blade combinations up to 450mm (18â€) length. 2 drive shaft lengths are available.
Fully waterproof heavy duty motor
Sealed UV resistant thermo-plastic cover
Solid brass 16mm diameter drive shaft and knurled nut
Single speed motor
Coast to park feature. Adjustable right or left park.
RF shielded circuitry
110 deg sweep angle. Adjustable 50, 65, 80 or 110 degrees
Includes 5 amp fuse & fuse holder
Full 3 year limited warranty. CE certified.
No load current 0.8 to 1.2 amp. Stall current 10 amps.
Stall torque 63kgf/cm 6.2 Nm
Motor Length : 169mm
Width : 84mm
Depth : 51mm - plus drive arm
12 volt only. 2 shaft lengths are available
The AFI 1000 wiper motor suits a variety of AFI arms and blades up to 450mm length as shown on following pages of this catalogue.
Pantographic arms will only function properly with wiper motor sweep angles of 80 degree or less. Wiper motor angle can be easily adjusted.
