Description

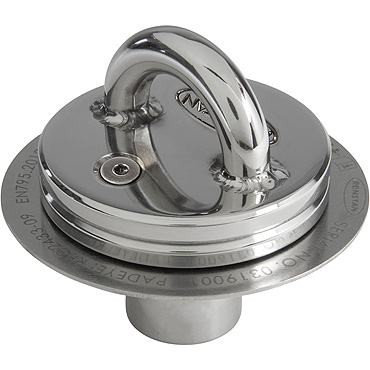

The Removable Screw-In Padeye Anchor Device consists of two parts:
A structural anchor base which is permanently fixed to the structure.
A screw-in anchor for connection of personal protection equipment.
The structural anchor base is to be permanently fastened to the structure using 4 x M6 fasteners. The screw-in anchor is attached to the structural anchor base by means of a central threaded spigot. Once fully threaded in place the anti-rotation locking screw must be engaged to ensure that the anchor cannot unintentionally become detached from the structural anchor base. The screw-in anchor has a single attachment point for personal protection equipment.
Click to download a User Manual.
The Removable Screw-In Padeye Anchor Device consists of two parts:
A structural anchor base which is permanently fixed to the structure.
A screw-in anchor for connection of personal protection equipment.
The structural anchor base is to be permanently fastened to the structure using 4 x M6 fasteners. The screw-in anchor is attached to the structural anchor base by means of a central threaded spigot. Once fully threaded in place the anti-rotation locking screw must be engaged to ensure that the anchor cannot unintentionally become detached from the structural anchor base. The screw-in anchor has a single attachment point for personal protection equipment.
Click to download a User Manual.
Thread M16
A29.0 mm
B70.0 mm
C9.0 mm
D26.9 mm
E14.0 mm
F23.0 mm
B. L.- kg
Weight303 g
A29.0 mm
B70.0 mm
C9.0 mm
D26.9 mm
E14.0 mm
F23.0 mm
B. L.- kg
Weight303 g
