Description

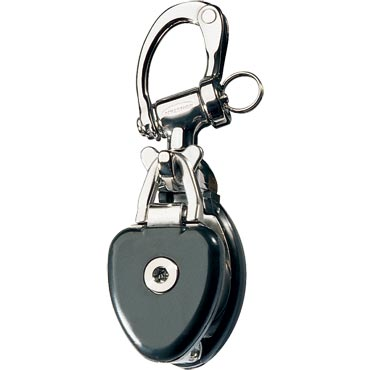

Snatch blocks are a tough and reliable solution for temporary leads and line deflection. Simple and quick to deploy, they can be easily opened when the load is released. The standard snap shackle head allows the block to swivel through 360 °. Soft resilient cheeks reduce clatter and protect gelcoat and painted surfaces. Attachment point provided for shock cord hanger.Trunnion snap shackle provides the same swivel action and offers additional articulation from side to side.
Spare Parts; RF6262 Replacement Plunger Pin Kit
Snatch blocks are a tough and reliable solution for temporary leads and line deflection. Simple and quick to deploy, they can be easily opened when the load is released. The standard snap shackle head allows the block to swivel through 360°. Soft resilient cheeks reduce clatter and protect gelcoat and painted surfaces. Attachment point provided for shock cord hanger.Trunnion snap shackle provides the same swivel action and offers additional articulation from side to side.
Spare Parts; RF6262 Replacement Plunger Pin Kit
Sheave Ø 45 mm
Max. Rope Ø 16 mm
Max. Cable Ø - mm
Pin Ø - mm
M.W.L.1275 kg
B. L.2550 kg
Weight610 g
Max. Rope Ø 16 mm
Max. Cable Ø - mm
Pin Ø - mm
M.W.L.1275 kg
B. L.2550 kg
Weight610 g
