Description

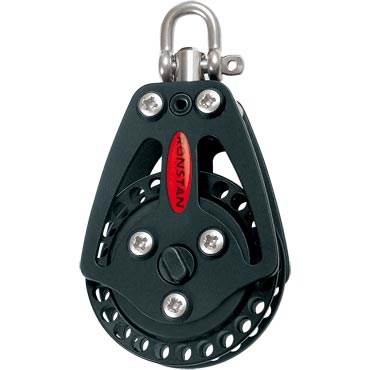

The patented extruded hole design, in conjunction with the groove profile of the sheave, provides a more powerful grip than conventional designs - up to 20:1 holding power. Unrivalled low weight is achieved by the use of a Torlon ratchet pawl, high grade machined alloy sheave and black Acetal hubs and bearings. On-Off switching knob is fitted to both sides of the swivel blocks (one can be removed if desired). Ratchet blocks can be disassembled for sheave replacement with RF62000.
The patented extruded hole design, in conjunction with the groove profile of the sheave, provides a more powerful grip than conventional designs - up to 20:1 holding power. Unrivalled low weight is achieved by the use of a Torlon ratchet pawl, high grade machined alloy sheave and black Acetal hubs and bearings. On-Off switching knob is fitted to both sides of the swivel blocks (one can be removed if desired). Ratchet blocks can be disassembled for sheave replacement with RF62000.
Sheave Ø 60 mm
Max. Rope Ø 10 mm
Max. Cable Ø - mm
Pin Ø 5.0 mm
M.W.L.250 kg
B. L.1370 kg
Weight150 g
Max. Rope Ø 10 mm
Max. Cable Ø - mm
Pin Ø 5.0 mm
M.W.L.250 kg
B. L.1370 kg
Weight150 g
