Description

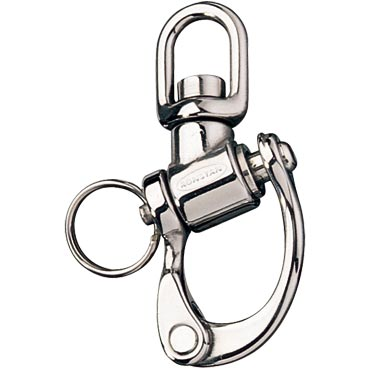

Trunnion swivel head allows both 360 degrees rotation and side to side articulation. Designed to maintain correct load orientation in applications where shackle movement might be restricted when attached to perforated toe rails, low profile pad eyes. Suits RF6161 replacement plunger pin kit.
Trunnion swivel head allows both 360 degrees rotation and side to side articulation. Designed to maintain correct load orientation in applications where shackle movement might be restricted when attached to perforated toe rails, low profile pad eyes. Suits RF6161 replacement plunger pin kit.
A16.0 mm
B10.0 mm
C70.0 mm
M.W.L.750 kg
B. L.1500 kg
Weight57 g
B10.0 mm
C70.0 mm
M.W.L.750 kg
B. L.1500 kg
Weight57 g
