Description

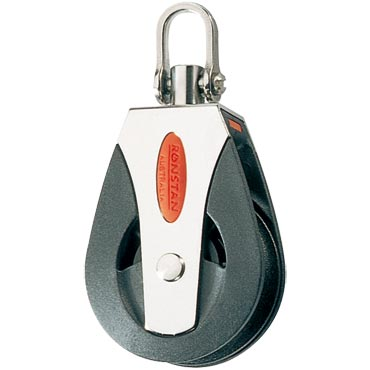

Ideal for high load applications. Wear resistant sheave material, in lightweight, self lubricating polymer, is suitable for use with rope or wire.Captive Lock universal head can be fixed in either of two planes, or free to swivel as required
Ideal for high load applications. Wear resistant sheave material, in lightweight, self lubricating polymer, is suitable for use with rope or wire.Captive Lock universal head can be fixed in either of two planes, or free to swivel as required
Sheave Ø 50 mm
Max. Rope Ø 12 mm
Max. Cable Ø 5 mm
Pin Ø 5.0 mm
M.W.L.750 kg
B. L.1500 kg
Weight117 g
Max. Rope Ø 12 mm
Max. Cable Ø 5 mm
Pin Ø 5.0 mm
M.W.L.750 kg
B. L.1500 kg
Weight117 g
