Description

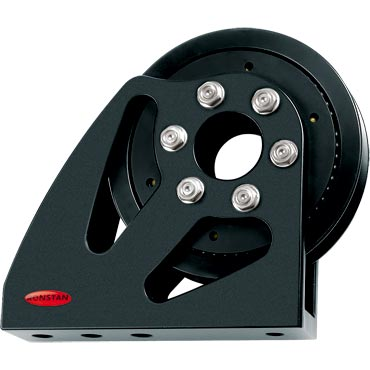

Ball Bearing models have Torlon needle rollers for axial loads, and acetal ball bearings for side thrust loads.The self-contained alloy sheave packages provide reliable, low-friction performance at high loads. The high axial loads are carried by Torlon roller needle bearings, while side thrust loads are taken up by Acetal ball bearings. Block sheeve and cheeks ar
Ball Bearing models have Torlon needle rollers for axial loads, and acetal ball bearings for side thrust loads.The self-contained alloy sheave packages provide reliable, low-friction performance at high loads. The high axial loads are carried by Torlon roller needle bearings, while side thrust loads are taken up by Acetal ball bearings. Block sheeve and cheeks ar
Sheave Ø 150 mm
Max. Rope Ø 20 mm
Max. Cable Ø - mm
Fastener Ø 12.0 + 10.0 mm
M.W.L.5500 kg
B. L.11000 kg
Weight1714 g
Max. Rope Ø 20 mm
Max. Cable Ø - mm
Fastener Ø 12.0 + 10.0 mm
M.W.L.5500 kg
B. L.11000 kg
Weight1714 g
