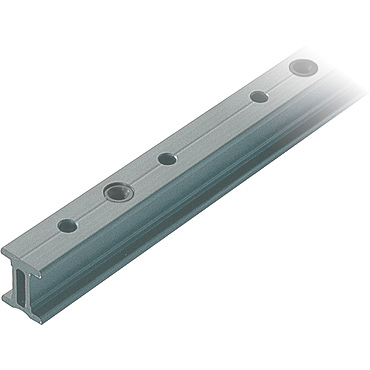

RC6190-1.0 - Series 19, Track
Roll over image to zoom in Click on image to zoom
RC6190-1.0 - Series 19, Track

RC6190-1.0 - Series 19, Track

Save $13.05
Ronstan
Price:
$73.94 $86.99

Description

TRACK FASTENINGS - To suit 5mm (3/16") countersunk fasteners at 100mm (3 15/16") centres.
STOP HOLES - 50mm (1 31/32") centres.
Track is supplied with RC7250-INS insulating inserts to eliminate corrosion between track and fasteners
MINIMUM CURVE RADIUS
For 51mm (2") car:
Min horizontal 'A' curve radius = 400mm (15 3/4")
Min horizontal 'B' curve radius = 400mm (15 3/4")
For 86mm (3 3/8") car:
Min horizontal 'A' curve radius = 1200mm (47 1/4")
Min horizontal 'B' curve radius = not suitable
Click to download curved track data (pdf).

TRACK FASTENINGS - To suit 5mm (3/16") countersunk fasteners at 100mm (3 15/16") centres. STOP HOLES - 50mm (1 31/32") centres. Track is supplied with RC7250-INS insulating inserts to eliminate corrosion between track and fasteners MINIMUM CURVE RADIUS For 51mm (2") car: Min horizontal 'A' curve radius = 400mm (15 3/4") Min horizontal 'B' curve radius = 400mm (15 3/4") For 86mm (3 3/8") car: Min horizontal 'A' curve radius = 1200mm (47 1/4") Min horizontal 'B' curve radius = not suitable Click to download curved track data (pdf).
Length996 mm
Width19 mm
Weight830 g
