Description
The GME PSA Series of Regulated Power Supplies offer quality and superior performance rarely found in power supplies sold in this price bracket. All PSA Series Power Supplies feature rugged steel construction, superior performance and unparalleled reliability with less than 20mV ripple at the continuous rating, making them ideal for all RF and computer applications. With a vented wrap-around steel cover, high efficiency heat sinks, heavy duty construction and PC board mounted regulator circuitry, the PSA series are quality power supplies with good performance and high reliability. Features: ● Over Voltage Protection circuit to prevent damage to equipment ● Current Limiting Circuit preventing damage to the power supply ● Strong, insulated screw terminals with metal threads and collars ● Thermal Fuse Protection to protect the power supply against over heating or burnout
| Code | Description | Total Peak Current 10% duty cycle (Amps) | Total Continuous Current (Amps) | Max Continuous Current @ 13.8V (Amps) | Max Continuous Current @ 9V |

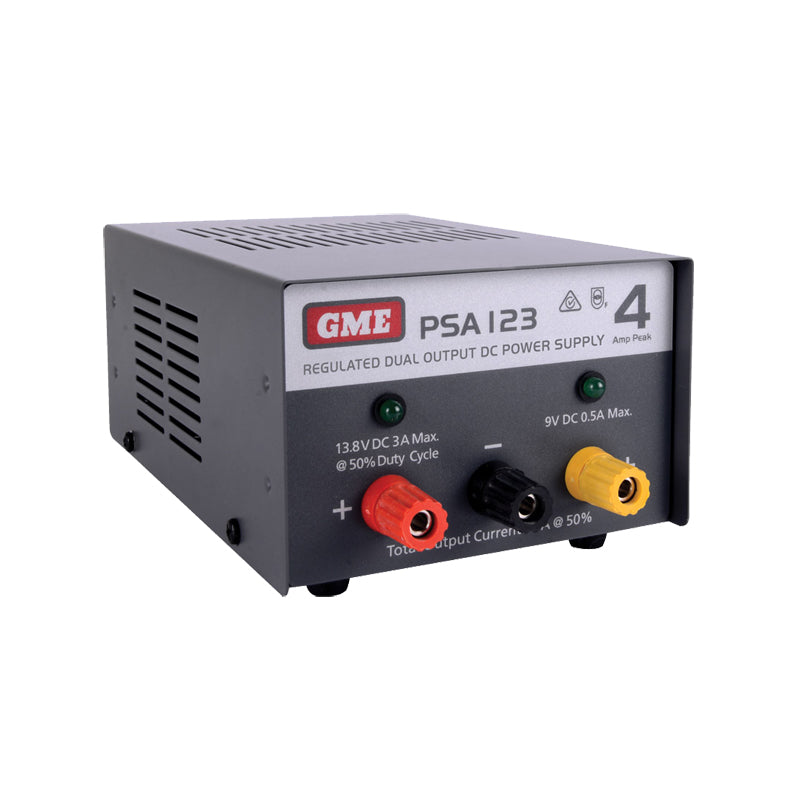

| 675340 | 4 AMP Peak Regulated Power Supply | 4 | 1.5 | 1.5 | 500 mA |

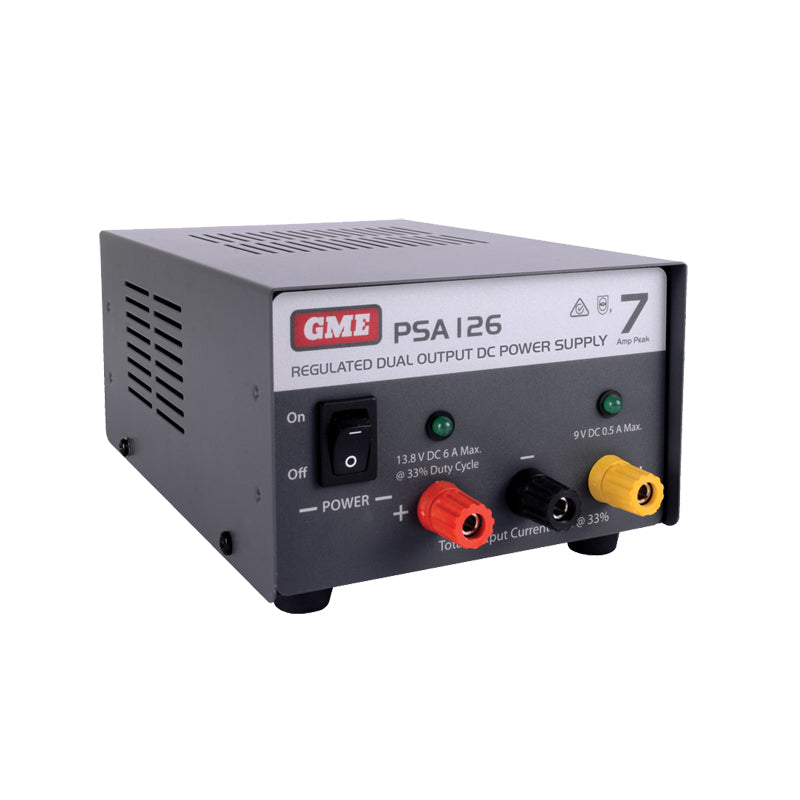

| 675341 | 7 AMP Peak Regulated Power Supply | 7 | 2 | 2 | 500 mA |
