Description

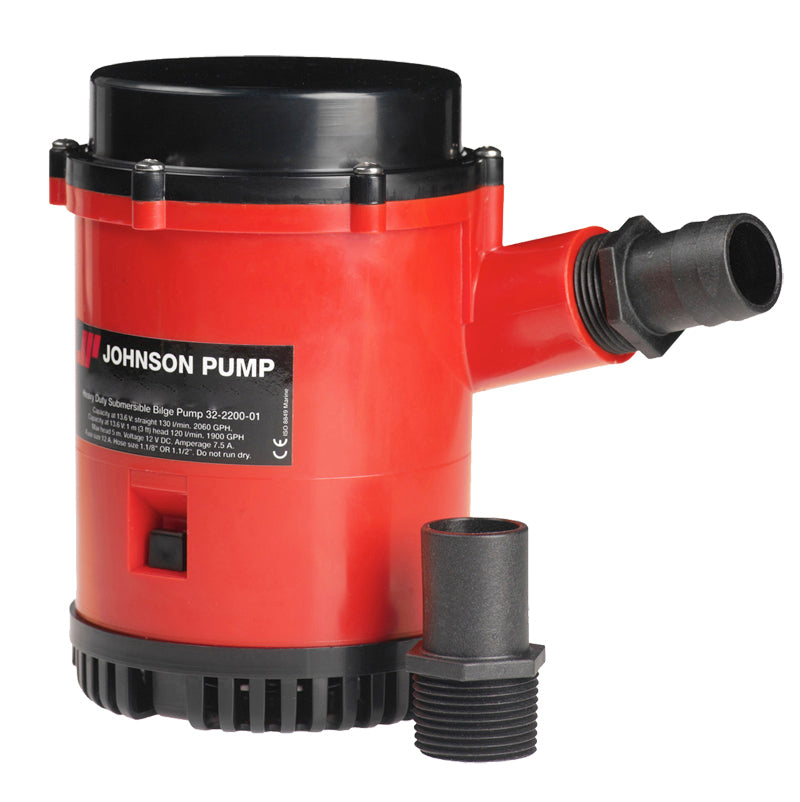

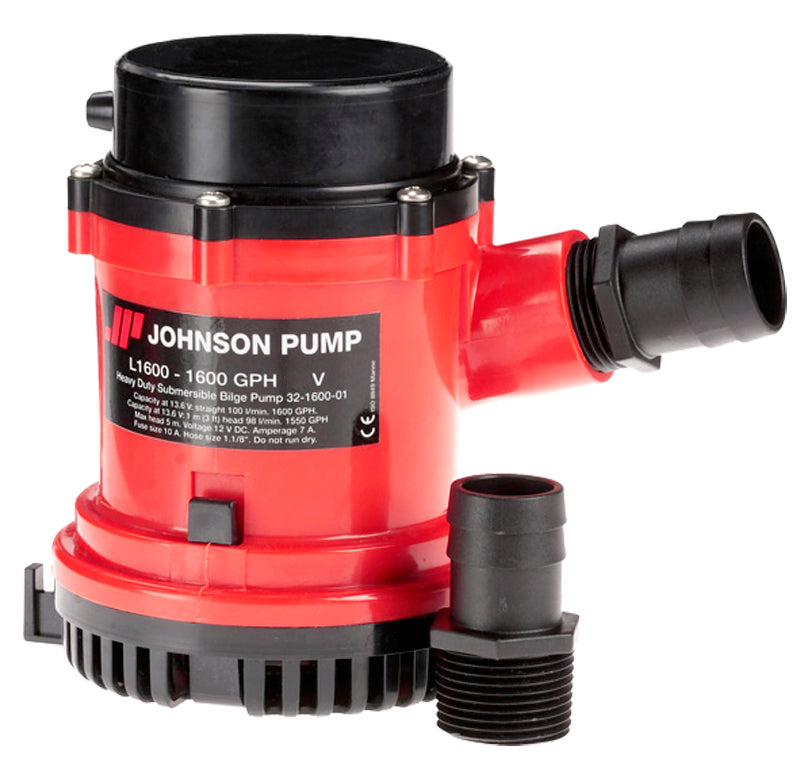

Designed to meet and exceed the tough demands of commercial and recreational duty. This pump has a liquid cooled, 12 pole motor with double ball bearings for extended service life. The L1600 model has a lipseal, while the L2200 motor is sealed off by a mechanical seal design. The impellor is carefully designed and tested to maximise head and flow. The L4000 features a robust motor design, mechanical shaft seal, high impact ABS plastic and unique threaded port design. Universal base plate and a choice of 1 1/2” or 2” ports makes for a simple installation. Removable check valve included. L1600 - 108mm base x 149mm high - Will Fit Rule 1500 & 2000 Bases L2200 - 108mm base x 177mm high - Will Fit Rule 1500 & 2000 Bases L4000 - 121mm base x 216mm high
| Code | Description | Voltage | Capacity at 3ft (0.9m) Head (13.6v/27v) | Capacity Zero Head(13.6v/27v) | Amps | Fuse | Hose Size |
| 180305 | L1600 Bilge Pump | 12v | 98Lpm - 1550GPH | 100Lpm - 1600GPH | 7A | 10A | 1 1/8” and 1 1/4” |
| 180307 | L1600 Bilge Pump | 24v | 98Lpm - 1550GPH | 100Lpm - 1600GPH | 3.5A | 6A | 1 1/8” and 1 1/4” |
| 180315 | L2200 Bilge Pump | 12v | 120Lpm - 1900GPH | 130Lpm - 2060GPH | 7.5 | 12A | 1 1/8” and 1 1/4” |
| 180325 | L2200 Bilge Pump | 24v | 120Lpm - 1900GPH | 130Lpm - 2060GPH | 4.5A | 6A | 1 1/8” and 1 1/4” |
| 180335 | L4000 Bilge Pump | 12v | 164Lpm - 2600GPH | 252Lpm - 4000GPH | 15A | 25A | 1 1/2” and 2” |
| 180345 | L4000 Bilge Pump | 24v | 164Lpm - 2600GPH | 252Lpm - 4000GPH | 7.5A | 15A | 1 1/2” and 2” |
