Description
Johnson cartridge bilge pumps incorporate some of the most advanced features in the industry, features developed from service in a wide variety of uses including racing, cruising, sport fishing and demanding commercial duties. For L450, L550 and L650 we have improved the design with easy to install Dura-port discharge ports to eliminate stress cracking by over tightened hose clamps. The pumps are delivered including both a straight and a 90° smooth elbow Dura-Port as well as a removable check valve. Features - Compact, all-in-one motor/impeller unit, No tools needed for maintenance, Extremely energy efficient, Water-cooled motor for long service intervals, Meets the international standard, ISO 8849 marine. 70mm base x 112mm high
Code | Description | Voltage | Capacity at 3ft (0.9m) Head (13.6v/27v) | Capacity Zero Head(13.6v/27v) | Amperage | Fuse Size | Hose Size |
184100 | L500 | GPH | 33Lpm - 525GPH | 40Lpm - 630GPH | 2.5A | 5A | 3/4” |

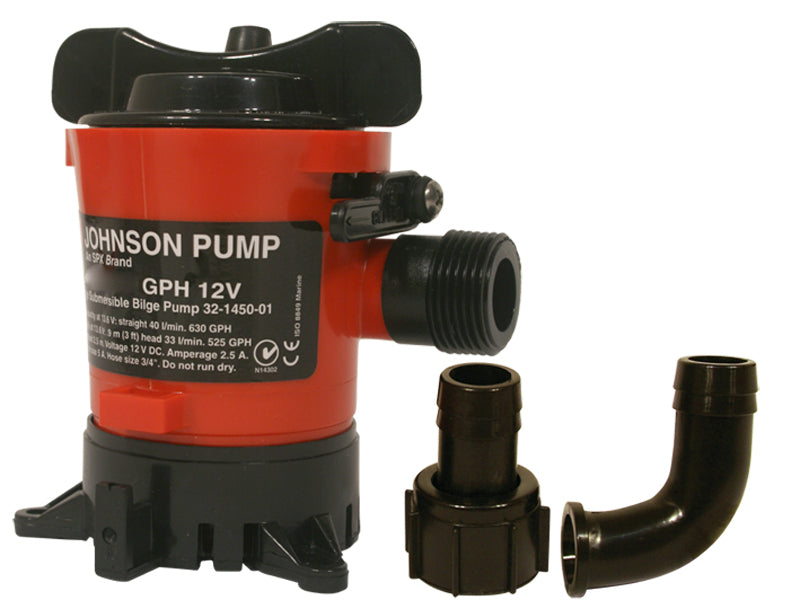

184105 | L750 | GPH | 44Lpm - 700GPH | 50Lpm - 800GPH | 3A | 5A | 3/4” |
184110 | L1000 | GPH | 50Lpm - 800GPH | 63Lpm - 1000GPH | 3.2A | 5A | 3/4” |

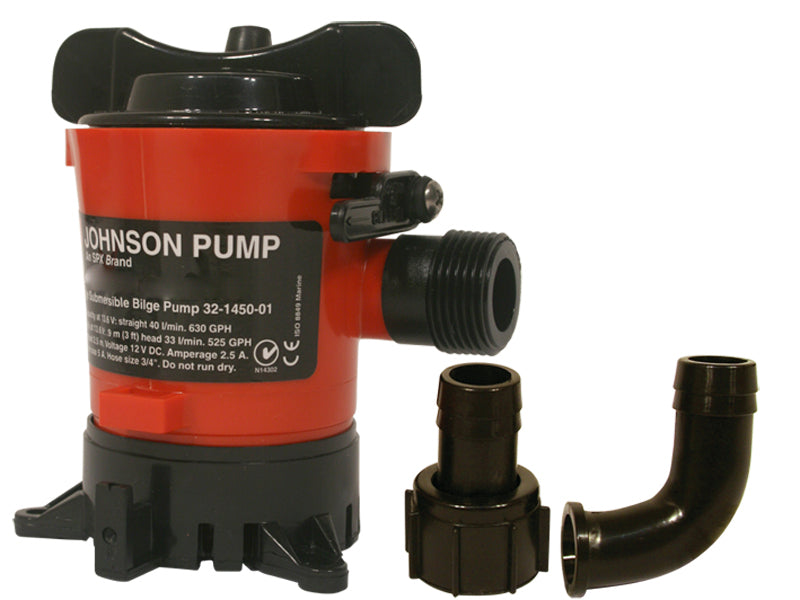

184111 | L1000 | GPH | 50Lpm - 800GPH | 63Lpm - 1000GPH | 2A | 3A | 3/4” |
184115 | L1250 | GPH | 60Lpm - 952GPH | 73Lpm - 1150GPH | 3A | 5A | 1 1/8” |

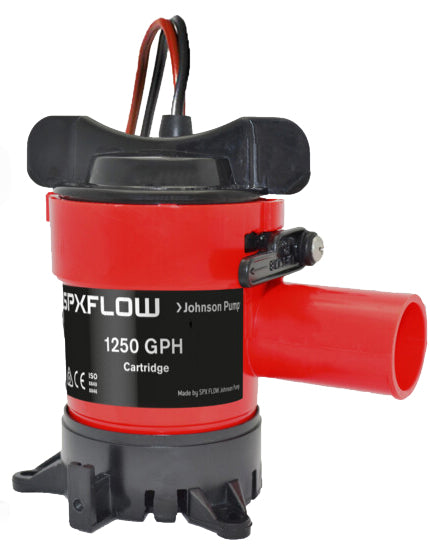

184116 | L1250 | GPH | 60Lpm - 952GPH | 73Lpm - 1150GPH | 2A | 3A | 1 1/8” |
