Description
● Automatically combines two batteries when charging and isolates the two batteries when not charging ● No voltage drop comparing to battery isolator diodes (0.6v) ● Robust Glass Fibre reinforced Nylon enclosure ● Built-In LED function (On when VSR engages) ● Surface or Panel Mount options Specifications ● Normal Voltage: DC 12v ● Combine / Open Voltage: DC 13.7v / 12.8v ● Continuous Current Rating: 125A ● Intermittent Current Rating: 140A ● Power Consumption: 10mA (Standby) / 33mA (Engaged)
| Code | Description |

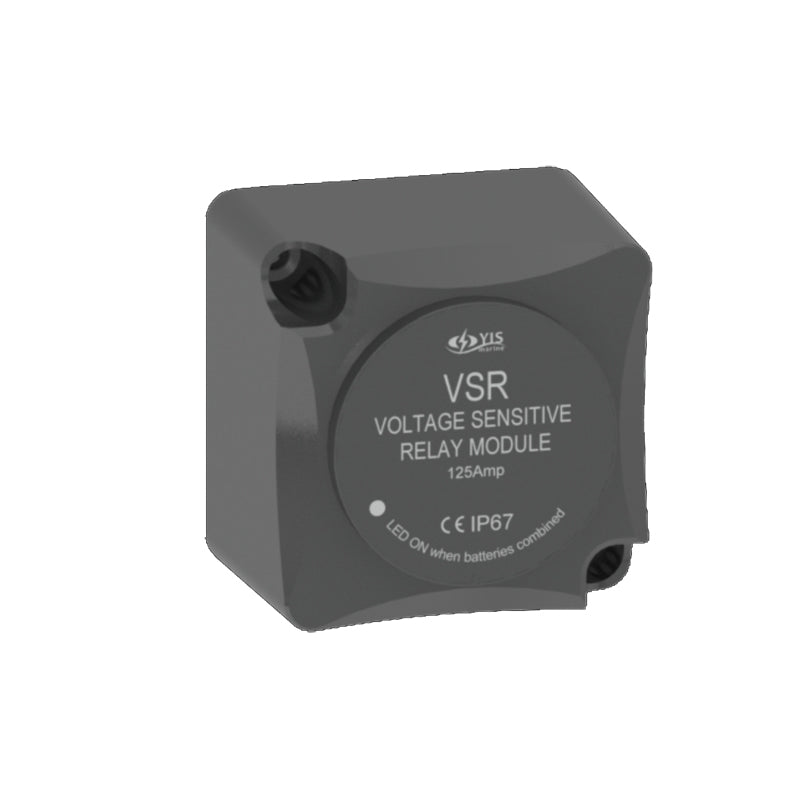

| 700078 | WATERLINE Voltage Sensitive Relay - 12v - 125 Amp |
