Description
As wind shifts, water conditions change or passengers move about, the Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. The ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.
| Code | Model Number | Display Colour | Number of Stations | Actuators per Tab Plate | Overall Width | Overall Height/ Thickness | Mounting Hole Cutout (diameter) | DC Voltage | Fuse Size Power Input (1 actuator per tab) | Fuse Size Power Input (2 actuator per tab) |

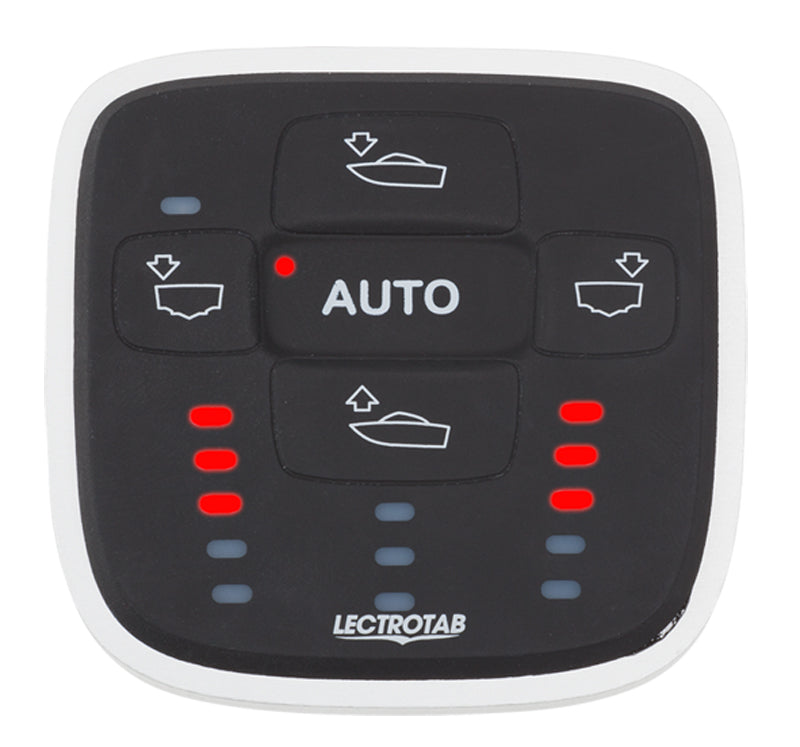

| 624166 | ALC-1 | Black | 1 | 1 | 3.15” (80mm) | 3.0” (77mm)/ 0.437” (11mm) | 2” (50mm) | 44554 | 12vdc= 15amp 24vdc= 10amp | N/A |

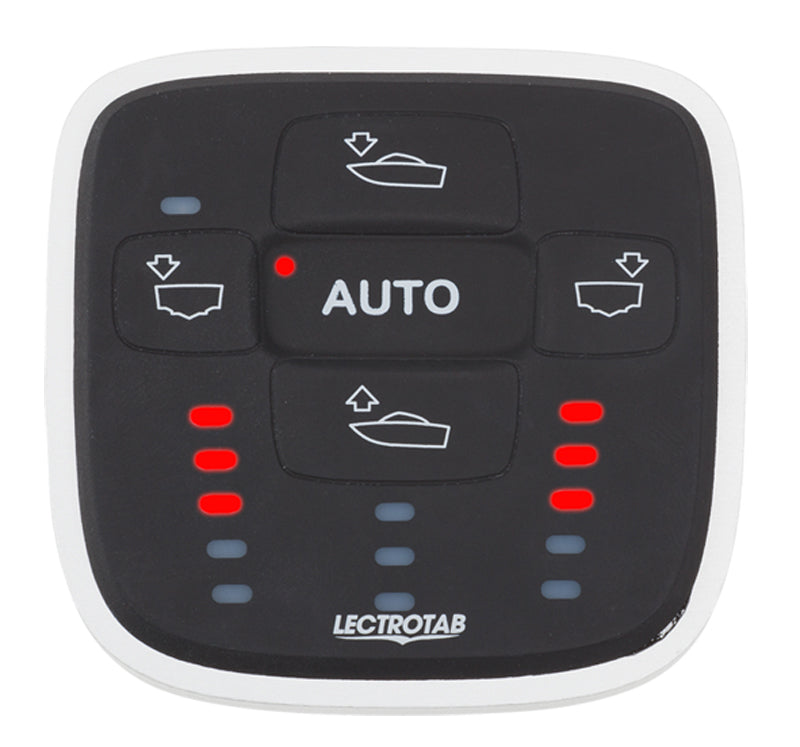

| 624167 | ALC-1D | Black | 1 or 2 | 1 | 3.15” (80mm) | 3.0” (77mm)/ 0.437” (11mm) | 2” (50mm) | 44554 | 12vdc= 15amp 24vdc= 10amp | N/A |
