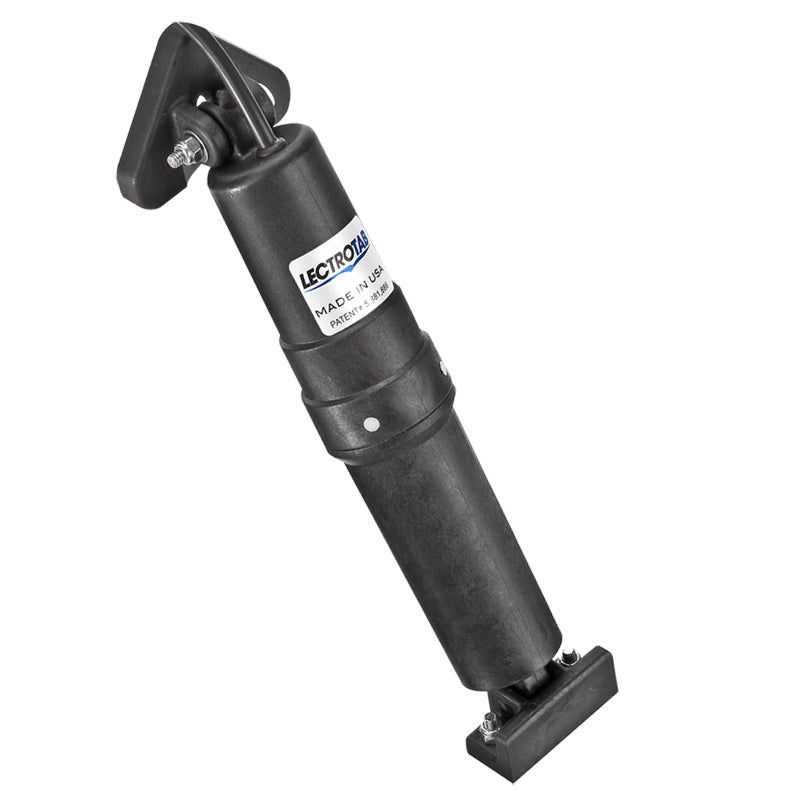

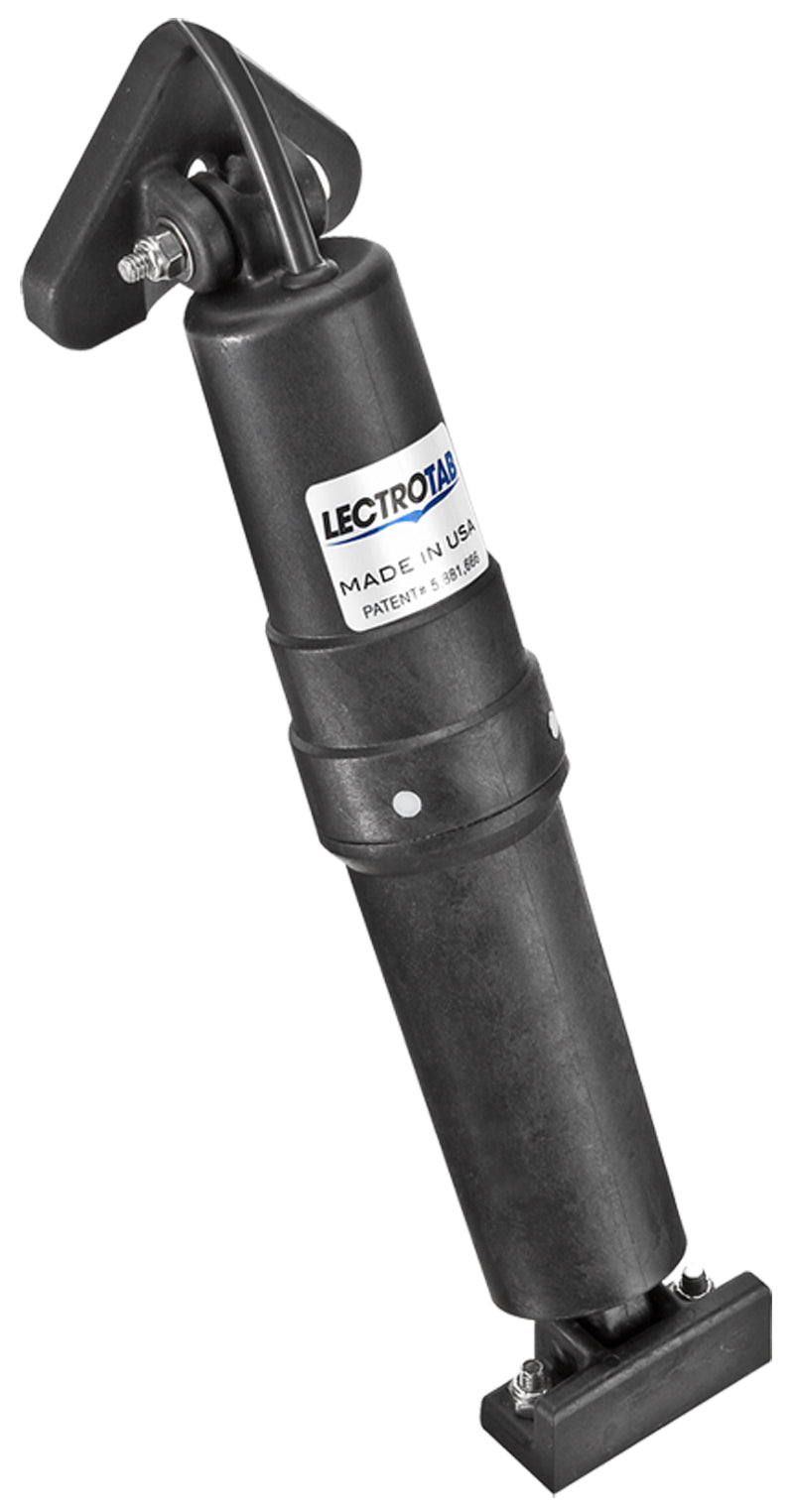

Lectrotab Standard Actuator

Lectrotab trim tab actuators are precision engineered to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. Actuators come in 12 and 24 VDC with 8 second recommended stroke time. Drop in replacement for Bennett long ram (in size), 2 1/4” of travel (11 1/4” vertical mount distance required) gives 15° of deflection using the Lectrotab standard mount point.
