Description

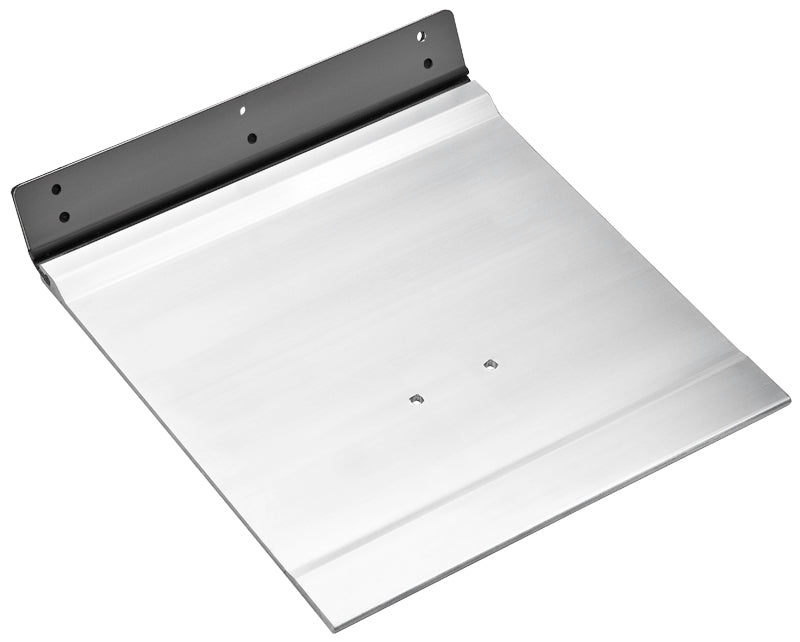

The Lectrotab aluminum alloy trim tabs are uniquely designed to meet the needs of aluminum hulled boats and are an economical option for all boats. All aluminum alloy tabs are fabricated with an extremely strong “no-break” polypropylene hinge. The tabs are made of marine grade 6005-T5 aluminum alloy material that is equivalent in strength to 10 gauge stainless steel. All aluminum tabs are sealed with a corrosion resistant epoxy coating.
| Code | Description | Chord Length | Tab Width |
| 624120 | 9 x 9 Aluminium Trim Tab Plate Assembly | 9” | 9” |
| 624121 | 9 x12 Aluminium Trim Tab Plate Assembly | 9” | 12” |
| 624122 | 9 x 18 Aluminium Trim Tab Plate Assembly | 9” | 18” |
| 624123 | 9 x 24 Aluminium Trim Tab Plate Assembly | 9” | 24” |
| 624130 | 12 x 9 Aluminium Trim Tab Plate Assembly | 12” | 9” |
| 624131 | 12 x 12 Aluminium Trim Tab Plate Assembly | 12” | 12” |
| 624132 | 12 x 18 Aluminium Trim Tab Plate Assembly | 12” | 18” |
| 624133 | 12 x 24 Aluminium Trim Tab Plate Assembly | 12” | 24” |
| 624134 | 12 x 30 Aluminium Trim Tab Plate Assembly | 12” | 30” |
