Description
● 3/4” Standard Tapered Shaft ● Built in lock valve to prevent feedback from the motor ● Integral relief valve to protect the steering system from excess pressure ● Easily accessible lock valve seals and shaft seal for replacement ● All Helms include a pair of 90° adjustable elbow fittings to connect to 5/16” hose ● Mounting hardware and template included with the helm
| Part No. | Type | Model No. | Volume | Port Threads | Recommended Steering Wheel Dia. |

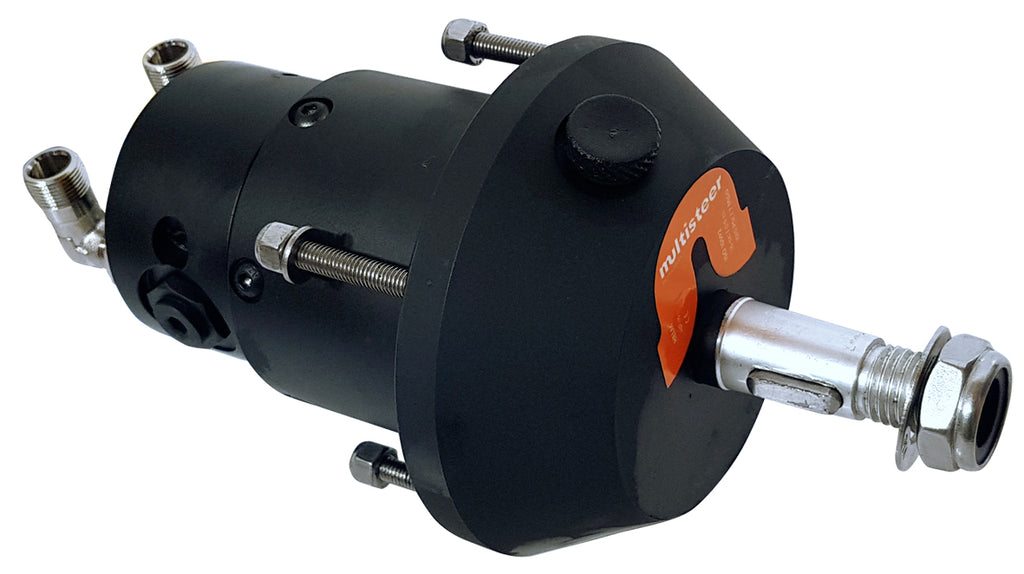

| 712399 | Type A | LM-HP-16 | 16cc | 9/16” | 280mm |
| 712404 | Type B | LM-HP-23 | 23cc | 9/16” | 350mm |

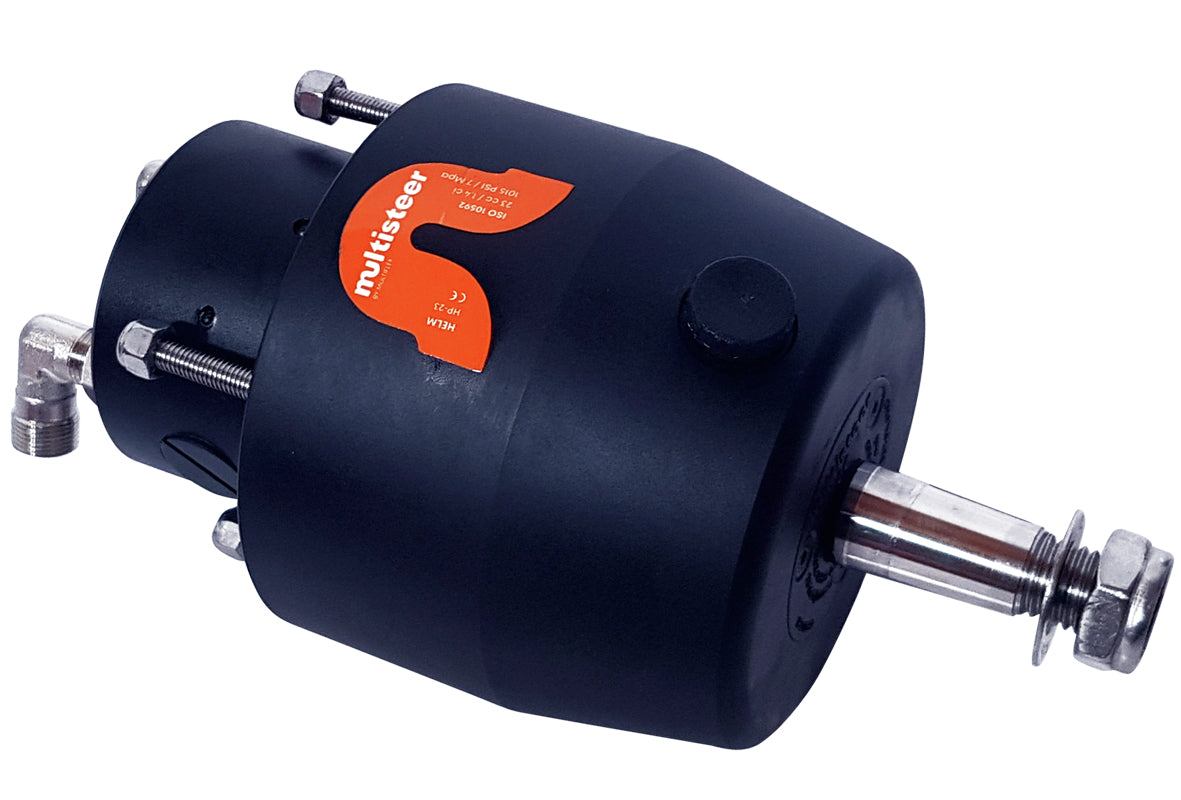

| 712408 | Type B | LM-HP-27 | 27cc | 9/16” | 400mm |
| 712412 | Type B | LM-HP-33 | 33cc | 9/16” | 400mm |
| 712416 | Type B | LM-HP-40 | 40cc | 9/16” | 400mm |
