Description

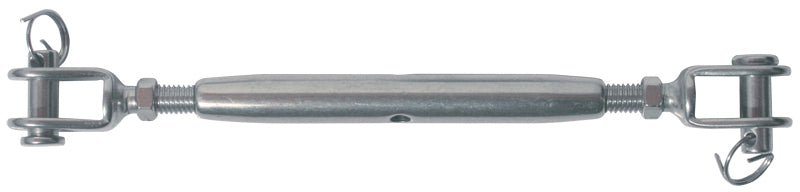

316 Grade Stainless steel JAW and JAW bottlescrews. Available bulk only
| Code | Dia. (mm) | TDL | A (mm) | B (mm) | L - Min (mm) | L - Max (mm) |
| SS312J-05 | 5mm | 750kg | 11.5mm | 7.5mm | 125 | 185 |
| SS312J-06 | 6mm | 1400kg | 12.5mm | 8.3mm | 140 | 215 |
| SS312J-08 | 8mm | 2200kg | 15.5mm | 11.8mm | 165 | 250 |
| SS312J-10 | 10mm | 3450kg | 17.5mm | 12.5mm | 200 | 300 |
| SS312J-12 | 12mm | 5000kg | 28mm | 15mm | 245 | 380 |
