Description

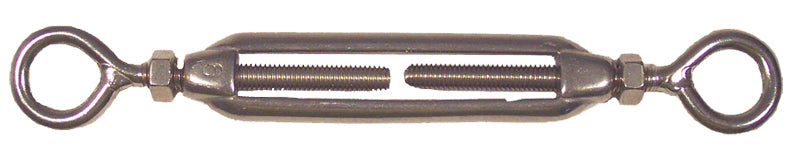

316 Grade Stainless steel EYE and EYE turnbuckles. Available bulk only.
| Code | Dia. (mm) | TDL | B (mm) | L - Min (mm) | L - Max (mm) |
| SS311E-04 | 4mm | 475kg | 8mm | 98mm | 135mm |
| SS311E-05 | 5mm | 680kg | 8mm | 120mm | 170mm |
| SS311E-06 | 6mm | 1500kg | 10mm | 150mm | 220mm |
| SS311E-08 | 8mm | 2300kg | 12mm | 200mm | 290mm |
| SS311E-09 | 10mm | 3100kg | 15mm | 245mm | 350mm |
| SS311E-12 | 12mm | 4400kg | 20mm | 315mm | 470mm |
| SS311E-16 | 16mm | 8100kg | 25mm | 400mm | 610mm |
