Description

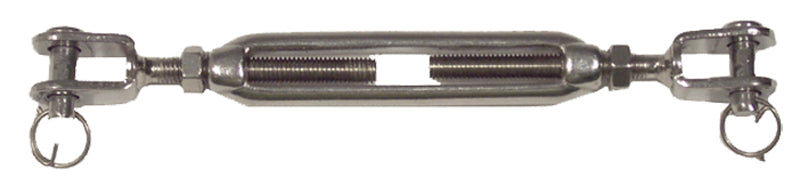

316 Grade Stainless steel JAW and JAW turnbuckles.Available bulk only.
| Code | Dia. (mm) | TDL | A (mm) | B (mm) | L Min (mm) | L Max (mm) |
| SS311J-05 | 5mm | 680kg | 10mm | 6mm | 120 | 160 |
| SS311J-06 | 6mm | 1500kg | 9mm | 7mm | 150 | 200 |
| SS311J-08 | 8mm | 2300kg | 10mm | 10mm | 195 | 265 |
| SS311J-09 | 10mm | 3100kg | 10mm | 10mm | 235 | 340 |
| SS311J-12 | 12mm | 4400kg | 13mm | 13mm | 320 | 455 |
