Description

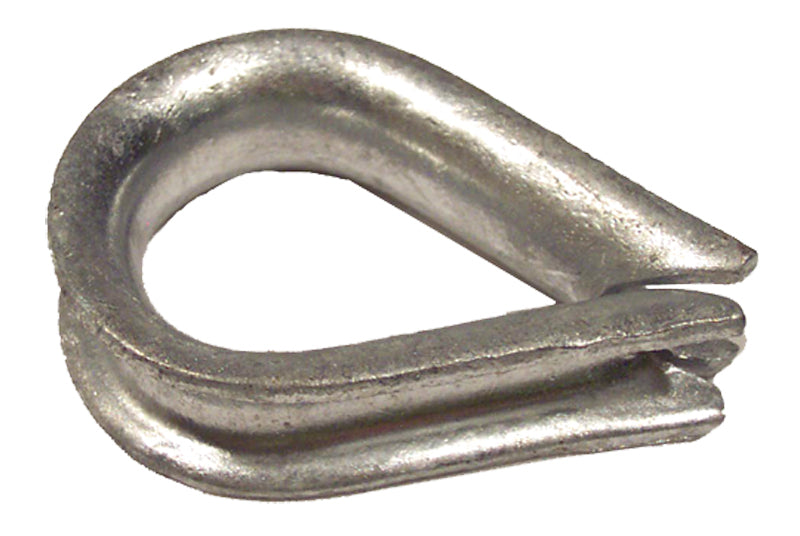

Galvanised THIMBLES. Available bulk only.
Code | Rope Size (mm) | C (mm) | D (mm) | A (mm) | E (mm) | B (mm) |
613151 | 5 | 33.5 | 8.3 | 13 | 5 | 21.5 |
613152 | 6 | 39 | 9.8 | 16 | 6 | 26 |
613153 | 8 | 50 | 12.4 | 19.7 | 9 | 32.1 |
613154 | 10 | 57.8 | 15 | 24 | 11 | 37.6 |
613155 | 12 | 67 | 16 | 28.4 | 13 | 44.6 |
613156 | 16 | 89 | 23 | 36.7 | 17 | 60 |
613157 | 20 | 111 | 27.5 | 46 | 20.5 | 72 |
613158 | 22 | 126 | 32 | 52 | 23.6 | 82.5 |
613159 | 25 | 139 | 33.5 | 55 | 26.9 | 93 |
