Description
304 Grade stainless steel bow rollers with quick release captive pin to retain rope or chain on roller.
| Code | Description | Nominal Mount Area L x W | Internal Width | Vertical Opening At Pin | Replacement Roller | Replacement Pin Kit |

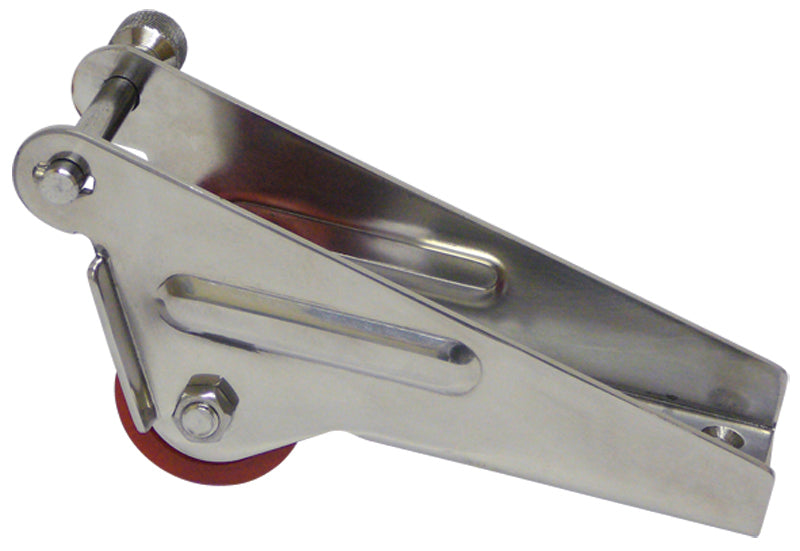

| 408606 | 4” S/S Bow Roller - Red Roller | 100 x 50mm | 52mm | 50mm | 761106 | 402226 |

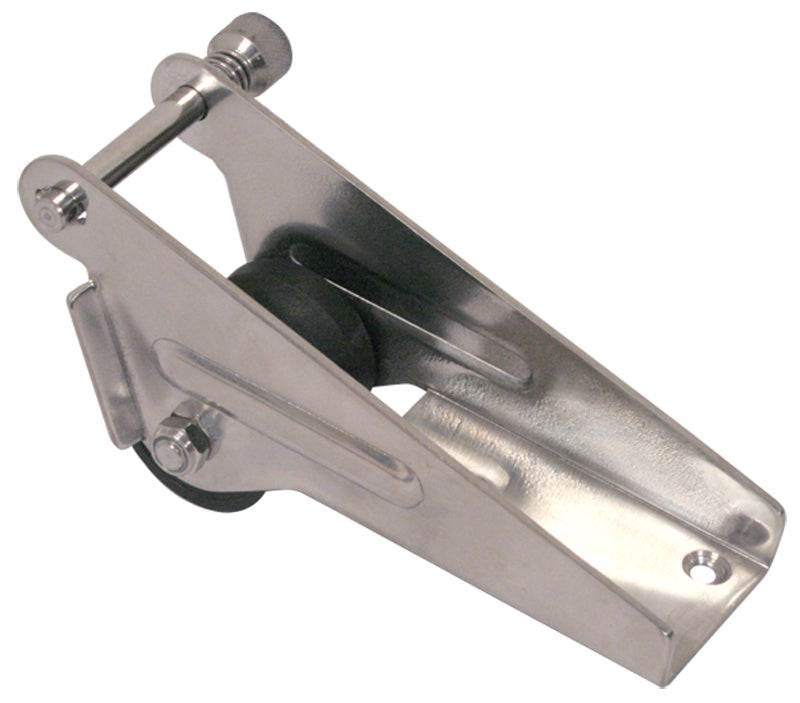

| 408607 | 4” S/S Bow Roller - Black Roller | 100 x 50mm | 52mm | 50mm | 408619 | 402226 |
| 408608 | 6” S/S Bow Roller - Red Roller | 150 x 50mm | 52mm | 50mm | 761106 | 402226 |
| 408609 | 6” S/S Bow Roller - Black Roller | 150 x 50mm | 52mm | 50mm | 408619 | 402226 |

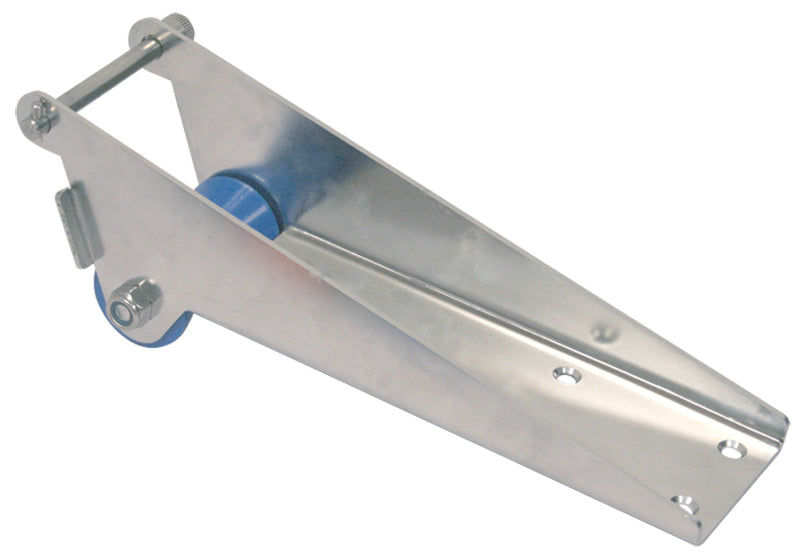

| 408604 | 10” Extra Wide Bow Roller - Blue Roller | 235 x 75mm | 80mm | 63mm | 760408 | 402235 |
