Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht.
• The reverse mount trim tab has a short ram, perfect where space is limited on the transoms or reverse if there is a swim platform.
• The actuator can be installed on the underside of a swim platform and does not impede tab movement (as seen in Diagram A).
• Lenco Electric Trim Tab Kits make your boat ride smoother, drier, faster and with increased safety whether on a small boat or a large yacht.
• The Lenco ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics.
• Plates 12 gauge - 304G stainless steal and 1/8" diameter hinge pin.
• Equipped with a fast response electric actuators for precise control.
• Fully submersible with all Plug and Play Deutsch connections.
• Compliance: CE Certified .
• 5 Year Warranty (Recreational Use).

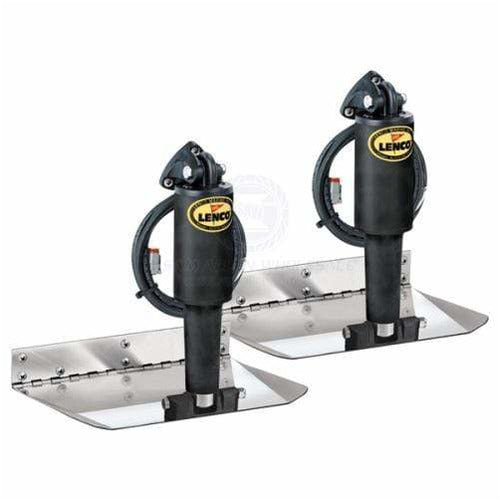

Kit Includes:
• 2 x 12 gauge stainless steel trim tab blades L 9" x W 12" with welded on lower mount bracket 5/16" hole.
• 2 x 101XDS actuators with 6' lead and Deutsch plugs.
• 2 x 20' actuator extension wiring harnesses.
• 2 x Upper mounting bracket with gland seal.
• 2 x XD lower mounting bracket.
• All necessary stainless steel mounting hardware
| Length | Width |
| 229mm | 305mm |
