Description
Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht.
• Built-in auto retract.
• 12/24 volt.
• LED indicator displays the exact position of your trim tabs, Auto brightness adjusting.
• Self check feature.
• Waterproof key pad and solid state control box with waterproof plug and play Deutsch connectors, backlit.
• 36" power pigtail for control box.

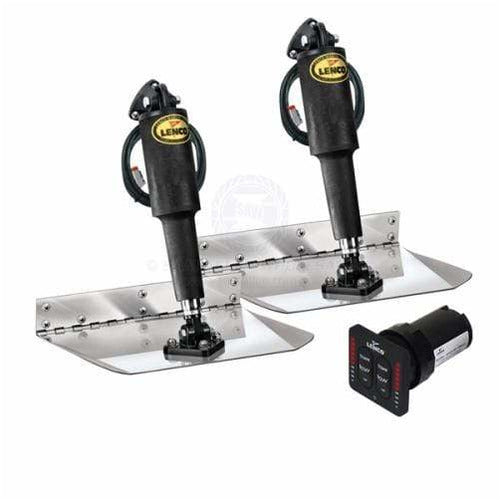

Standard Mount Trim Tab Kits:
• 2 x Standard Mount Plates, 12 Gauge (2.7mm) - 304G stainless steel with a 5/8" flared trailing edge and 1/8" diameter hinge pin.
• 2 x 12 volt 101 actuators with 1.8m cable and Deutsch connectors.
• 2 x actuator extension wiring harness (6m) with Deutsch connectors.
• 1 x set of stainless steel fasteners.
• 2 x upper mounting bracket with gland seal.
• 2 x lower mounting bracket.
• Lenco owner’s installation manual.
• 5 Year Warranty (Recreational Use).
55493 9x 9
55494 9 x 12 included LED Switch
55495 12 x 12 inc LED Switch
