Description

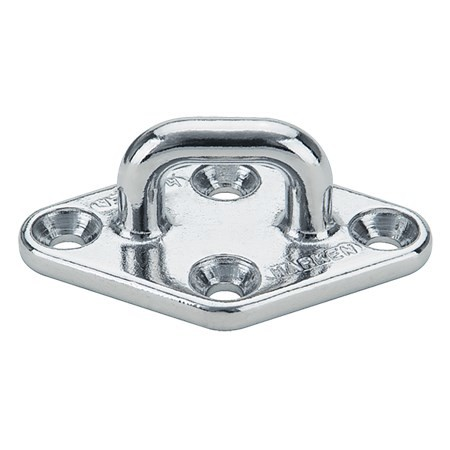

Padeyes are great for mounting blocks and are also used as attachment points for staysails, reefing blocks, and hundreds of other items. Harken ® offers a range of stainless steel padeyes. The diamond-shaped padeyes, 688 and 689, are 316 stainless and often used at mastbases where the diamond shape allows them to be mounted very close together.
A (mm)79 mm
A (in)3 1/8 in
B (mm)51 mm
B (in)2 in
C (mm)60 mm
C (in)2 3/8 in
D (mm)32 mm
D (in)1 1/4 in
E (mm)30 mm
E (in)1 3/16 in
F (mm)14 mm
F (in) 9/16 in
G (mm)22 mm
G (in) 7/8 in
Weight (g)135 g
Weight (oz)4.75 oz
Maximum Working Load - angle 1 (kg)1770 kg
Maximum Working Load - angle 1 (lb)3800 lb
Maximum Working Load - angle 2 (kg)2270 kg
Maximum Working Load - angle 2 (lb)5000 lb
Maximum Working Load - angle 3 (kg)1950 kg
Maximum Working Load - angle 3 (lb)4300 lb
Breaking load - angle 1 (kg)3540 kg
Breaking load - angle 1 (lb)7800 lb
Breaking load - angle 2 (kg)4535 kg
Breaking load - angle 2 (lb)10000 lb
Breaking load - angle 3 (kg)3900 kg
Breaking load - angle 3 (lb)8600 lb
Fasteners (mm)6 FH mm
Fasteners (in)1/4 FH in
A (in)3 1/8 in
B (mm)51 mm
B (in)2 in
C (mm)60 mm
C (in)2 3/8 in
D (mm)32 mm
D (in)1 1/4 in
E (mm)30 mm
E (in)1 3/16 in
F (mm)14 mm
F (in) 9/16 in
G (mm)22 mm
G (in) 7/8 in
Weight (g)135 g
Weight (oz)4.75 oz
Maximum Working Load - angle 1 (kg)1770 kg
Maximum Working Load - angle 1 (lb)3800 lb
Maximum Working Load - angle 2 (kg)2270 kg
Maximum Working Load - angle 2 (lb)5000 lb
Maximum Working Load - angle 3 (kg)1950 kg
Maximum Working Load - angle 3 (lb)4300 lb
Breaking load - angle 1 (kg)3540 kg
Breaking load - angle 1 (lb)7800 lb
Breaking load - angle 2 (kg)4535 kg
Breaking load - angle 2 (lb)10000 lb
Breaking load - angle 3 (kg)3900 kg
Breaking load - angle 3 (lb)8600 lb
Fasteners (mm)6 FH mm
Fasteners (in)1/4 FH in
