Description

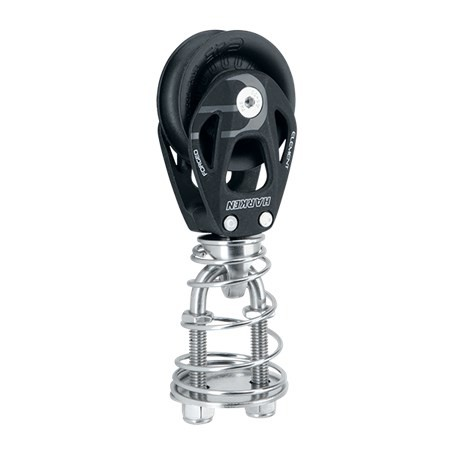

Stand-up blocks are an addition to our Element line. Use them for sheeting and halyard systems, running backstays, controls and other applications where you don 't want the block to hit the deck. Element blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element 's design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks. Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.
Sheave Ø(in)1 3/4 in
Length (mm)123 mm
Length (in)4 7/8 in
Base Ø(mm)38 mm
Base Ø(in)1 1/2 in
Weight (g)150 g
Weight (oz)5.3 oz
Maximum line Ø(mm)12 mm
Maximum line Ø(in)1/2 in
Maximum working load (kg)700 kg
Maximum working load (lb)1543 lb
Breaking load (kg)1400 kg
Breaking load (lb)3086 lb
Fasteners (mm)6 mm
A (mm)20 mm
A (in)13/16 in
