Description

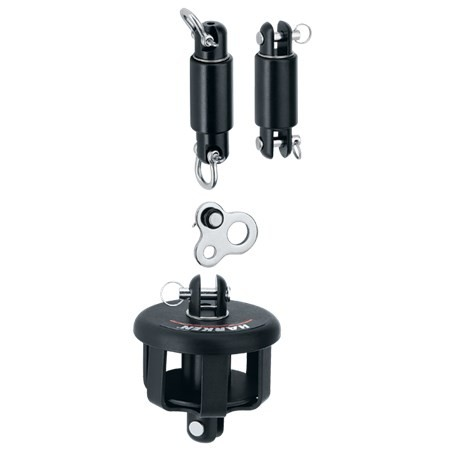

Harken ® Small Boat furling systems allow the trailerable cruising or dinghy sailor to set and furl the jib from the cockpit. The hoistable ball bearing halyard swivel can be installed on your headstay so you can raise or lower the sail without removing the headstay. Swivels are independent of the headstay, allowing you to tension the luff separately from the mast rake.
Pin-to-pin length (mm)64 mm
Pin-to-pin length (in) 2 1/2 in
Drum Ø(mm)73 mm
Drum Ø(in)2 7/8 in
Maximum line Ø(mm)4 mm
Maximum line Ø(in)5/32 in
Jaw width (mm)8 mm
Jaw width (in) 5/16 in
Maximum luff wire Ø(mm)4 mm
Maximum luff wire Ø(in) 5/32 in
Clevis pin Ø(mm)6.4 mm
Clevis pin Ø(in)1/4 in
Weight (g)318 g
Weight (oz)11.2 oz
Maximum working load (kg)431 kg
Maximum working load (lb)950 lb
Boat length - monohull (m)4.9 - 6.1 m
Boat length - monohull (ft)16 - 20 ft
Boat length - multihull (m)to 5.5 m
Boat length - multihull (ft)to 18 ft
Includes upper swivel164
Includes hoistable swivel464
Includes drum165
