Description

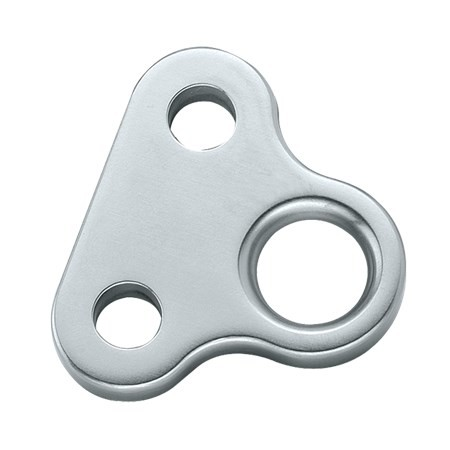

Stainless steel tack adapter tangs are used to adapt pin diameters on headstays to the standard clevis pin size that comes on the Harken Small Boat underdeck furling unit. A third hole accepts lashing to adjust jib luff tension.
Tang hole to tang hole length (mm)38 mm
Tang hole to tang hole length (in)1 1/2 in
Maximum luff wire Ø(mm)5 mm
Maximum luff wire Ø(in) 3/16 in
Length (in)2 9/16 in
Length (mm)65 mm
Width (in)2 1/4 in
Width (mm)57 mm
Upper pin Ø(mm)10 mm
Upper pin Ø(in)3/8 in
Lower pin Ø(mm)11 mm
Lower pin Ø(in)7/16 in
Weight (g)147 g
Weight (oz)5.2 oz
Maximum working load (kg)1361 kg
Maximum working load (lb)3000 lb
Use with furling unit478
