Description

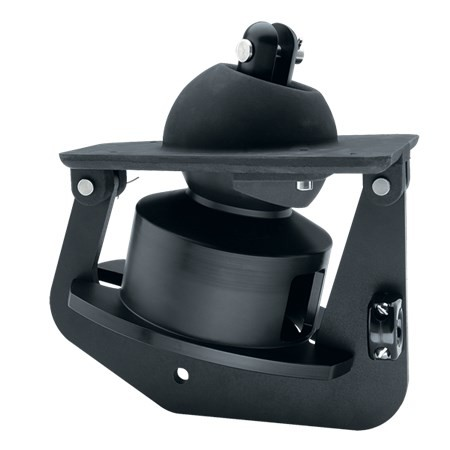

Includes drum and upper swivel. Does not include hoistable swivel.
Pin-to-pin length (mm)260 mm
Pin-to-pin length (in)10 7/32 in
Drum Ø(mm)127 mm
Drum Ø(in)5 in
Minimum line Ø(mm)5 mm
Minimum line Ø(in)3/16 in
Maximum line Ø(mm)6 mm
Maximum line Ø(in)1/4 in
Jaw width (mm)12 mm
Jaw width (in) 1/2 in
Maximum luff wire Ø(mm)6 mm
Maximum luff wire Ø(in)1/4 in
Clevis pin Ø(mm)11.1 mm
Clevis pin Ø(in)7/16 in
Weight (g)2721 g
Weight (oz)96 oz
Maximum working load (kg)1361 kg
Maximum working load (lb)3000 lb
FootnoteIncludes drum and upper swivel. Does not include hoistable swivel.
