Description

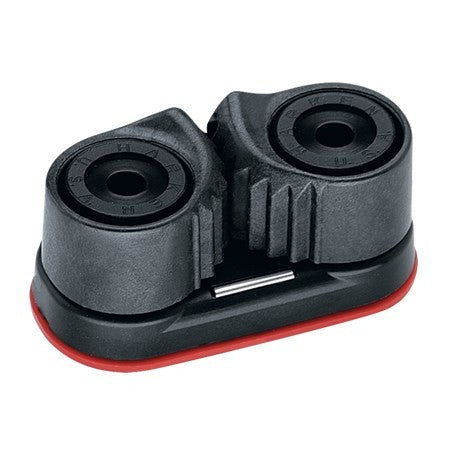

Harken ® ball bearing cam cleats hold lines securely and release instantly for easy, precise trimming. Lightweight fiber-reinforced Carbo-Cams ® for racing where weight is critical, or where adjustments are less frequent.
Height (mm)22 mm
Height (in) 7/8 in
Length (mm)48 mm
Length (in)1 7/8 in
Width (mm)24 mm
Width (in) 15/16 in
Weight (g)19 g
Weight (oz)0.67 oz
Minimum line Ø(mm)3 mm
Minimum line Ø(in) 1/8 in
Maximum line Ø(mm)6 mm
Maximum line Ø(in)1/4 in
Fastener spacing (mm)27 mm
Fastener spacing (in)1 1/16 in
Fasteners (mm)4 RH mm
Fasteners (in)#8 RH in
Maximum working load (kg)68 kg
Maximum working load (lb)150 lb
Breaking load (kg)136 kg
Breaking load (lb)300 lb
PawlsPlastic carbon-matrix
