Description

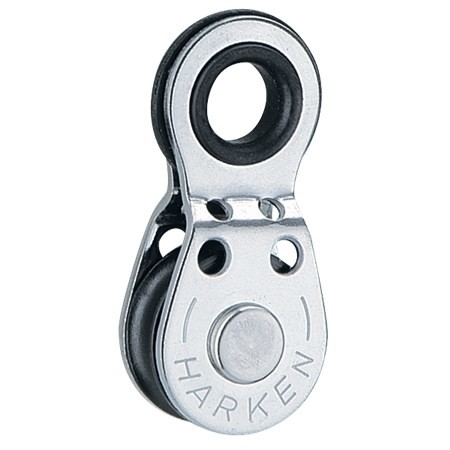

The 16 mm is Harken 's smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race and has a 250 lb (113 kg) maximum working load. The 467 uses a narrow sheave for extremely small control lines and has a ferrule head for soft attachments.
Sheave Ø(mm)16 mm
Sheave Ø(in)5/8 in
Length (mm)37 mm
Length (in)1 15/32 in
Weight (g)12 g
Weight (oz).44 oz
Maximum line Ø(mm)4 mm
Maximum line Ø(in) 5/32 in
Maximum working load (kg)113 kg
Maximum working load (lb)250 lb
Breaking load (kg)339 kg
Breaking load (lb)750 lb
