Description

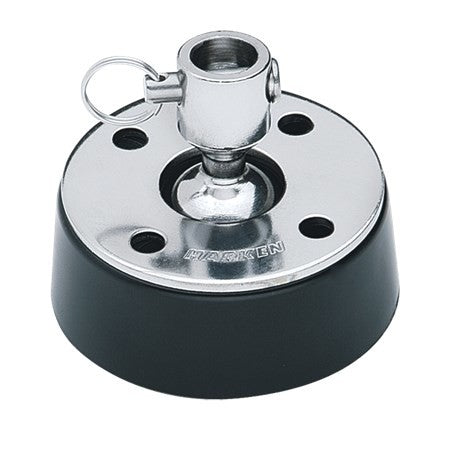

Stand-up bases allow a wide variety of blocks to be held upright, swivel freely, or pivot so lines have a fairlead under load. The ball-and-socket design lets blocks articulate up to 45 degrees and swivel freely. The 460 and 461 bases (high-load versions of the 010 and 029) have stainless steel reinforcement plates to handle the high load capacities of 57 mm and 75 mm Carbo blocks.
Height (mm)51 mm
Height (in)2 in
Weight (g)128 g
Weight (oz)4.5 oz
Base Ø(mm)54 mm
Base Ø(in)2 1/8 in
Inside socket Ø(in) 7/16 in
Inside socket Ø(mm)12 mm
Pin Ø(mm)6 mm
Pin Ø(in)1/4 in
Fasteners (mm)5 FH mm
Fasteners (in)#10 FH in
Maximum working load (kg)454 kg
Maximum working load (lb)1000 lb
Breaking load (kg)1134 kg
Breaking load (lb)2500 lb
Use with blocks75 mm Carbo
Height (in)2 in
Weight (g)128 g
Weight (oz)4.5 oz
Base Ø(mm)54 mm
Base Ø(in)2 1/8 in
Inside socket Ø(in) 7/16 in
Inside socket Ø(mm)12 mm
Pin Ø(mm)6 mm
Pin Ø(in)1/4 in
Fasteners (mm)5 FH mm
Fasteners (in)#10 FH in
Maximum working load (kg)454 kg
Maximum working load (lb)1000 lb
Breaking load (kg)1134 kg
Breaking load (lb)2500 lb
Use with blocks75 mm Carbo
