Description

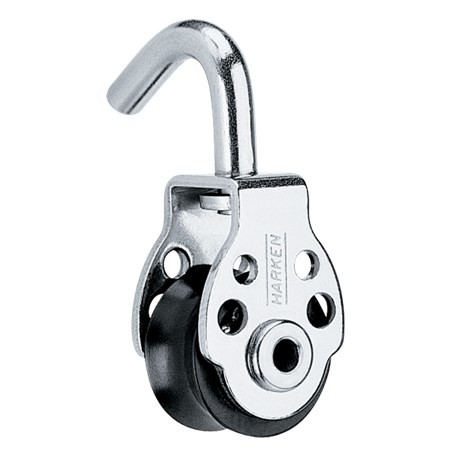

The 16 mm is Harken 's smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race and has a 250 lb (113 kg) maximum working load.
Sheave Ø(mm)16 mm
Sheave Ø(in)5/8 in
Length (mm)41 mm
Length (in)1 5/8 in
Weight (g)13 g
Weight (oz).5 oz
Maximum line Ø(mm)5 mm
Maximum line Ø(in) 7/32 in
Maximum working load (kg)113 kg
Maximum working load (lb)250 lb
Breaking load (kg)181 kg
Breaking load (lb)400 lb
Sheave Ø(in)5/8 in
Length (mm)41 mm
Length (in)1 5/8 in
Weight (g)13 g
Weight (oz).5 oz
Maximum line Ø(mm)5 mm
Maximum line Ø(in) 7/32 in
Maximum working load (kg)113 kg
Maximum working load (lb)250 lb
Breaking load (kg)181 kg
Breaking load (lb)400 lb
