Description

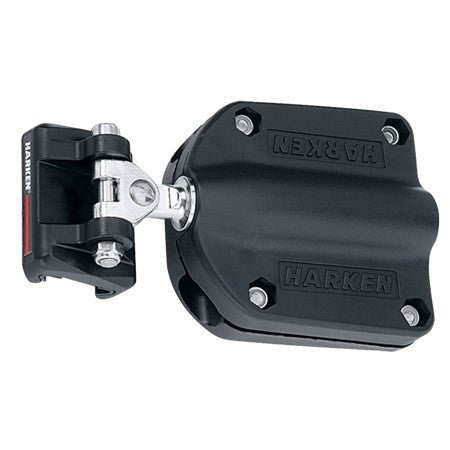

A Harken ® Battcar system along with full-length battens helps raise, douse, and reef with ease and acts as extra crew if you 're sailing shorthanded. Battcar systems outperform in-mast or in-boom furling, cost less, and you don 't need to recut your sail. Slider Battcars offer a lightweight, cost effective way to raise, reef, and douse mainsails. Hardcoat-anodized aluminum cars slide on low-friction plastic inserts. The compact car size translates into reduced weight and stack height.
Length (mm)44 mm
Length (in)1 3/4 in
Width (mm)35 mm
Width (in)1 3/8 in
Weight (g)181 g
Weight (oz)6.38 oz
Maximum batten width (mm)41 mm
Maximum batten width (in)1 5/8 in
Maximum batten Ø(mm)16 mm
Maximum batten Ø(in) 5/8 in
Batten shapeFlat/Round
Maximum sail area - monohull (m ²)56 m ²
Maximum sail area - monohull (ft ²)600 ft ²
Maximum sail area - multihull (m ²)46 m ²
Maximum sail area - multihull (ft ²)500 ft ²
Maximum working load (kg)159 kg
Maximum working load (lb)350 lb
A (mm)44 mm
A (in)1 3/4 in
B (mm)27 mm
B (in)1 1/16 in
C (mm)54 mm
C (in)2 1/8 in
D (mm)130 mm
D (in)5 1/8 in
E (mm)5 mm
E (in)3/16 in
Length (in)1 3/4 in
Width (mm)35 mm
Width (in)1 3/8 in
Weight (g)181 g
Weight (oz)6.38 oz
Maximum batten width (mm)41 mm
Maximum batten width (in)1 5/8 in
Maximum batten Ø(mm)16 mm
Maximum batten Ø(in) 5/8 in
Batten shapeFlat/Round
Maximum sail area - monohull (m ²)56 m ²
Maximum sail area - monohull (ft ²)600 ft ²
Maximum sail area - multihull (m ²)46 m ²
Maximum sail area - multihull (ft ²)500 ft ²
Maximum working load (kg)159 kg
Maximum working load (lb)350 lb
A (mm)44 mm
A (in)1 3/4 in
B (mm)27 mm
B (in)1 1/16 in
C (mm)54 mm
C (in)2 1/8 in
D (mm)130 mm
D (in)5 1/8 in
E (mm)5 mm
E (in)3/16 in
