Description

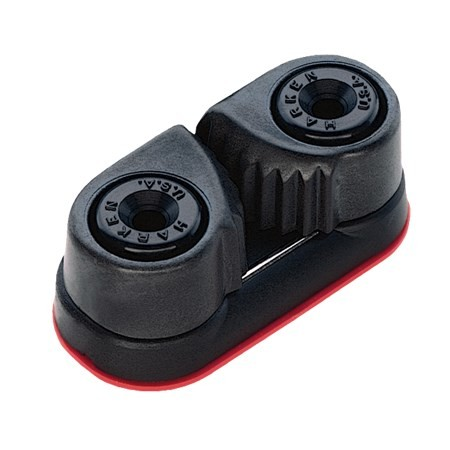

Harken ® ball bearing cam cleats hold lines securely and release instantly for easy, precise trimming. Lightweight fiber-reinforced Carbo-Cams ® for racing where weight is critical, or where adjustments are less frequent.
Height (mm)30 mm
Height (in)1 3/16 in
Length (mm)65 mm
Length (in)2 9/16 in
Width (mm)32 mm
Width (in)1 1/4 in
Weight (g)42 g
Weight (oz)1.44 oz
Minimum line Ø(mm)3 mm
Minimum line Ø(in)1/8 in
Maximum line Ø(mm)10 mm
Maximum line Ø(in) 3/8 in
Fastener spacing (mm)38 mm
Fastener spacing (in)1 1/2 in
Fasteners (mm)5 FH mm
Fasteners (in)#10 FH in
Maximum working load (kg)91 kg
Maximum working load (lb)200 lb
Breaking load (kg)227 kg
Breaking load (lb)500 lb
PawlsPlastic carbon-matrix
Height (in)1 3/16 in
Length (mm)65 mm
Length (in)2 9/16 in
Width (mm)32 mm
Width (in)1 1/4 in
Weight (g)42 g
Weight (oz)1.44 oz
Minimum line Ø(mm)3 mm
Minimum line Ø(in)1/8 in
Maximum line Ø(mm)10 mm
Maximum line Ø(in) 3/8 in
Fastener spacing (mm)38 mm
Fastener spacing (in)1 1/2 in
Fasteners (mm)5 FH mm
Fasteners (in)#10 FH in
Maximum working load (kg)91 kg
Maximum working load (lb)200 lb
Breaking load (kg)227 kg
Breaking load (lb)500 lb
PawlsPlastic carbon-matrix
