Description

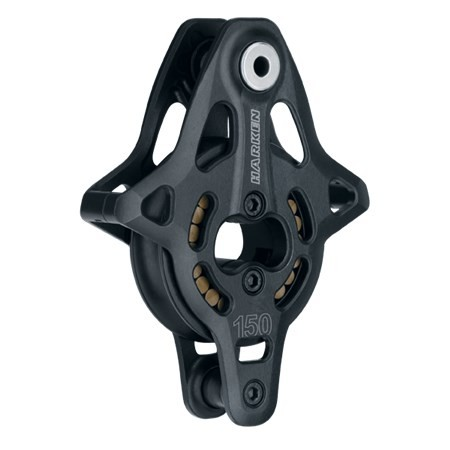

Runners are used on running backstays of offshore boats to adjust mast bend for different wind conditions. Integrated sideplate bails and recessed cotter key help produce a smooth design that won 't snag lifelines. Sideplates and sheaves Hard Lube-anodized for maximum UV protection and a smooth surface. Center cage keeps Torlon ® roller bearings separated and parallel to reduce friction. Torlon is a registered trademark of Solvay Advanced Polymers L.L.C.
Sheave Ø(mm)150 mm
Sheave Ø(in)5 15/16 in
Length (mm)275 mm
Length (in)10 13/16 in
Width (mm)216 mm
Width (in)8 1/2 in
Weight (g)1608 g
Weight (oz)56.72 oz
Clevis pin Ø(mm)19 mm
Clevis pin Ø(in)3/4 in
Maximum line Ø(mm)25 mm
Maximum line Ø(in)1 in
Maximum working load (kg)6804 kg
Maximum working load (lb)15000 lb
Breaking load (kg)13608 kg
Breaking load (lb)30000 lb
Sheave Ø(in)5 15/16 in
Length (mm)275 mm
Length (in)10 13/16 in
Width (mm)216 mm
Width (in)8 1/2 in
Weight (g)1608 g
Weight (oz)56.72 oz
Clevis pin Ø(mm)19 mm
Clevis pin Ø(in)3/4 in
Maximum line Ø(mm)25 mm
Maximum line Ø(in)1 in
Maximum working load (kg)6804 kg
Maximum working load (lb)15000 lb
Breaking load (kg)13608 kg
Breaking load (lb)30000 lb
