Description

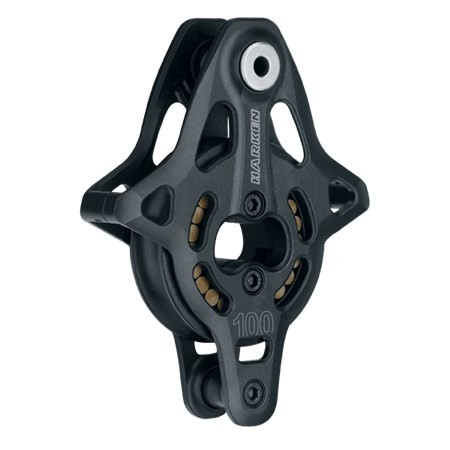

Runners are used on running backstays of offshore boats to adjust mast bend for different wind conditions. Integrated sideplate bails and recessed cotter key help produce a smooth design that won 't snag lifelines. Sideplates and sheaves Hard Lube-anodized for maximum UV protection and a smooth surface. Center cage keeps Torlon ® roller bearings separated and parallel to reduce friction. Torlon is a registered trademark of Solvay Advanced Polymers L.L.C.
Sheave Ø(mm)100 mm
Sheave Ø(in)3 15/16 in
Length (mm)193 mm
Length (in)7 9/16 in
Weight (g)542 g
Weight (oz)19.12 oz
Clevis pin Ø(mm)15.9 mm
Clevis pin Ø(in)5/8 in
Maximum line Ø(mm)16 mm
Maximum line Ø(in)5/8 in
Maximum working load (kg)3402 kg
Maximum working load (lb)7500 lb
Breaking load (kg)6804 kg
Breaking load (lb)15000 lb
