Description

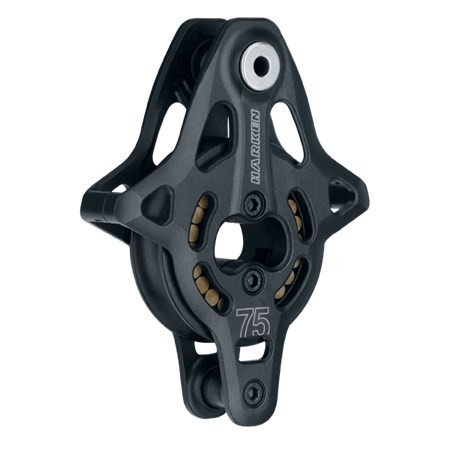

Runners are used on running backstays of offshore boats to adjust mast bend for different wind conditions. Integrated sideplate bails and recessed cotter key help produce a smooth design that won 't snag lifelines. Sideplates and sheaves Hard Lube-anodized for maximum UV protection and a smooth surface. Center cage keeps Torlon ® roller bearings separated and parallel to reduce friction. Torlon is a registered trademark of Solvay Advanced Polymers L.L.C.
Sheave Ø(mm)75 mm
Sheave Ø(in)2 15/16 in
Length (mm)146 mm
Length (in)5 3/4 in
Weight (g)318 g
Weight (oz)11.2 oz
Clevis pin Ø(mm)12.7 mm
Clevis pin Ø(in)1/2 in
Maximum line Ø(mm)14 mm
Maximum line Ø(in)9/16 in
Maximum working load (kg)2268 kg
Maximum working load (lb)5000 lb
Breaking load (kg)4536 kg
Breaking load (lb)10000 lb
