Description

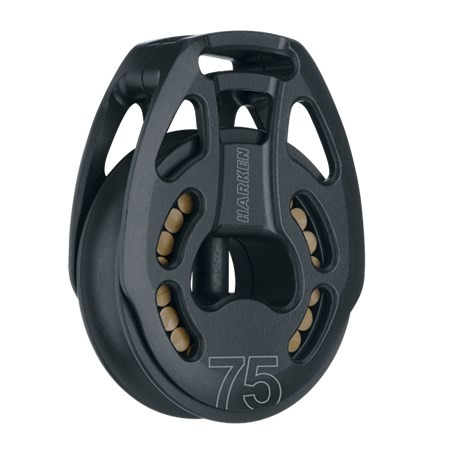

Black Magic Air blocks are a top favorite of Big Boat performance racers and cruisers. These lightweight, free-running, powerful performers are used for sail controls that see lots of action: mainsheet, runner, halyard, and spinnaker systems. A center cage keeps Torlon ® roller bearings separated and parallel to reduce friction. The sheave center carries primary load, allowing a smaller, lighter weight block. The soft-attachment Loop block has a removable deadend post for attachment to a padeye. Lashings can also be used. Torlon is a registered trademark of Solvay Advanced Polymers L.L.C.
Sheave Ø(mm)75 mm
Sheave Ø(in)2 15/16 in
Length (mm)100 mm
Length (in)3 15/16 in
Weight (g)209 g
Weight (oz)7.36 oz
Maximum line Ø(mm)14 mm
Maximum line Ø(in)9/16 in
Maximum working load (kg)2268 kg
Maximum working load (lb)5000 lb
Breaking load (kg)4536 kg
Breaking load (lb)10000 lb
Sheave Ø(in)2 15/16 in
Length (mm)100 mm
Length (in)3 15/16 in
Weight (g)209 g
Weight (oz)7.36 oz
Maximum line Ø(mm)14 mm
Maximum line Ø(in)9/16 in
Maximum working load (kg)2268 kg
Maximum working load (lb)5000 lb
Breaking load (kg)4536 kg
Breaking load (lb)10000 lb
