Description

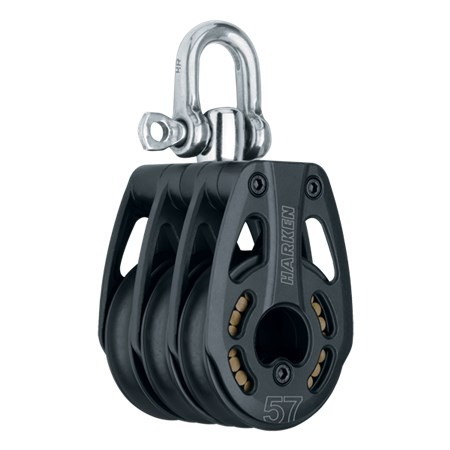

Black Magic Air blocks are a top favorite of Big Boat performance racers and cruisers. These lightweight, free-running, powerful performers are used for sail controls that see lots of action: mainsheet, runner, halyard, and spinnaker systems. A center cage keeps Torlon ® roller bearings separated and parallel to reduce friction. Shackle blocks lock in two directions or swivel to keep line from twisting. Torlon is a registered trademark of Solvay Advanced Polymers L.L.C.
Sheave Ø(mm)57 mm
Sheave Ø(in)2 1/4 in
Length (mm)132 mm
Length (in)5 3/16 in
Weight (g)378 g
Weight (oz)13.34 oz
Shackle pin Ø(mm)8 mm
Shackle pin Ø(in)5/16 in
Maximum line Ø(mm)12 mm
Maximum line Ø(in)7/16 in
Maximum working load (kg)2200 kg
Maximum working load (lb)4850 lb
Breaking load (kg)4400 kg
Breaking load (lb)9700 lb
Sheave Ø(in)2 1/4 in
Length (mm)132 mm
Length (in)5 3/16 in
Weight (g)378 g
Weight (oz)13.34 oz
Shackle pin Ø(mm)8 mm
Shackle pin Ø(in)5/16 in
Maximum line Ø(mm)12 mm
Maximum line Ø(in)7/16 in
Maximum working load (kg)2200 kg
Maximum working load (lb)4850 lb
Breaking load (kg)4400 kg
Breaking load (lb)9700 lb
