Description

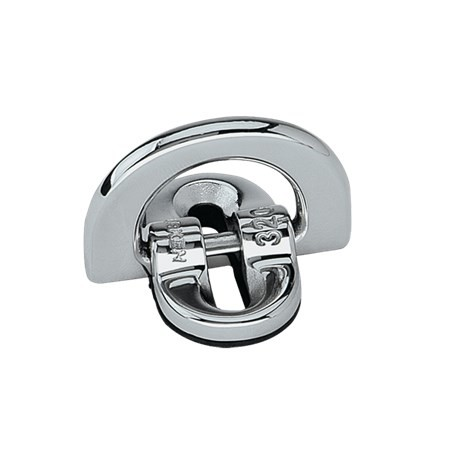

Folding padeyes keep your deck and passageways clear. They 're ready when you need to attach a snatch block or fender, but fold safely out of the way when you don 't.
A (mm)26 mm
A (in)1 in
B (mm)41.5 mm
B (in)1 5/8 in
C (mm)23 mm
C (in)7/8 in
E (mm)14.9 mm
E (in)19/32 in
F (mm)28 mm
F (in)1 1/8 in
Weight (g)65 g
Weight (oz)2.25 oz
Maximum working load (kg)800 kg
Maximum working load (lb)1760 lb
Breaking load (kg)1600 kg
Breaking load (lb)3520 lb
Fasteners (mm)6 FH mm
Fasteners (in)1/4 FH in
A (in)1 in
B (mm)41.5 mm
B (in)1 5/8 in
C (mm)23 mm
C (in)7/8 in
E (mm)14.9 mm
E (in)19/32 in
F (mm)28 mm
F (in)1 1/8 in
Weight (g)65 g
Weight (oz)2.25 oz
Maximum working load (kg)800 kg
Maximum working load (lb)1760 lb
Breaking load (kg)1600 kg
Breaking load (lb)3520 lb
Fasteners (mm)6 FH mm
Fasteners (in)1/4 FH in
