Description

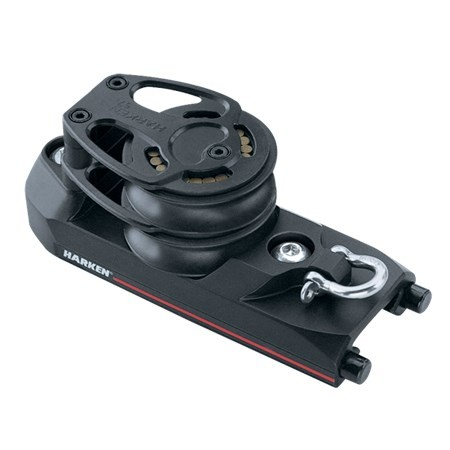

3173 and 3174 high-load controls allow 2:1 to 6:1 purchases on offshore boats with mainsails over 37 m ² (400 ft ²). Controls feature 57 mm Black Magic Big Boat ball/roller sheaves and high-load aluminum sideplates.
Sheave Ø(mm)57 mm
Sheave Ø(in)2 1/4 in
Length (mm)164 mm
Length (in)6 7/16 in
Width (in)2 1/4 in
Width (mm)57 mm
Height above track (mm)49 mm
Height above track (in)1 15/16 in
Weight for pair (g)1169 g
Weight for pair (oz)41 oz
Maximum line Ø(mm)12 mm
Maximum line Ø(in) 7/16 in
Maximum working load (kg)750 kg
Maximum working load (lb)1650 lb
Breaking load (lb)3300 lb
Breaking load (kg)1500 kg
Purchase 3:1 / 4:1
Sheave Ø(in)2 1/4 in
Length (mm)164 mm
Length (in)6 7/16 in
Width (in)2 1/4 in
Width (mm)57 mm
Height above track (mm)49 mm
Height above track (in)1 15/16 in
Weight for pair (g)1169 g
Weight for pair (oz)41 oz
Maximum line Ø(mm)12 mm
Maximum line Ø(in) 7/16 in
Maximum working load (kg)750 kg
Maximum working load (lb)1650 lb
Breaking load (lb)3300 lb
Breaking load (kg)1500 kg
Purchase 3:1 / 4:1
