Description

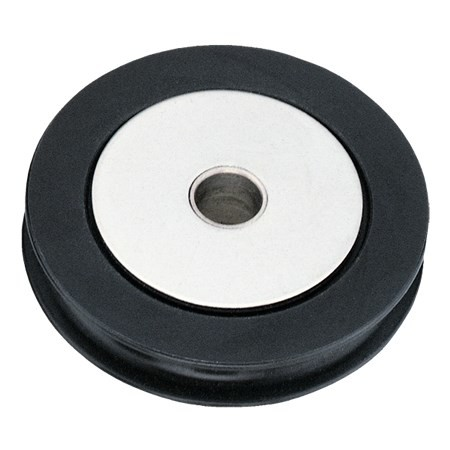

Self-contained sheaves are designed for sailors to use in custom applications. Wire sheaves ride on high-load composite bearings. They are hardcoat-anodized aluminium with PTFE impregnation.
Sheave Ø(mm)51 mm
Sheave Ø(in)2 in
Width (mm)10 mm
Width (in) 13/32 in
Weight (g)43 g
Weight (oz)1.5 oz
Center pin Ø(mm)8.1 mm
Center pin Ø(in) 5/16 in
Maximum line Ø(mm)6 mm
Maximum line Ø(in)1/4 in
Maximum wire Ø(mm)5 mm
Maximum wire Ø(in) 3/16 in
Maximum working load (kg)907 kg
Maximum working load (lb)2000 lb
Sheave Ø(in)2 in
Width (mm)10 mm
Width (in) 13/32 in
Weight (g)43 g
Weight (oz)1.5 oz
Center pin Ø(mm)8.1 mm
Center pin Ø(in) 5/16 in
Maximum line Ø(mm)6 mm
Maximum line Ø(in)1/4 in
Maximum wire Ø(mm)5 mm
Maximum wire Ø(in) 3/16 in
Maximum working load (kg)907 kg
Maximum working load (lb)2000 lb
