Description

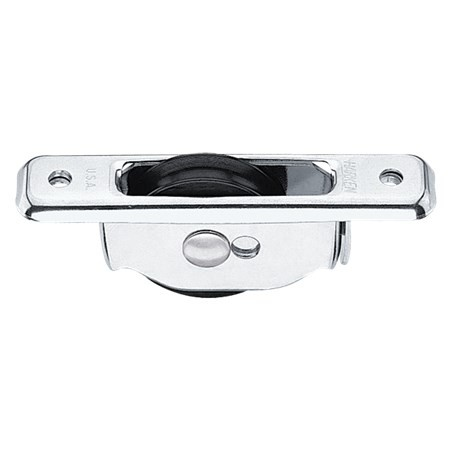

Lightweight, low-friction wire blocks carry wire halyards and high-strength control lines on boats of all sizes.
Sheave Ø(mm)51 mm
Sheave Ø(in)2 in
Weight (g)163 g
Weight (oz)5.75 oz
Maximum wire Ø(in)3/16 in
Maximum wire Ø(mm)5 mm
Maximum line Ø(mm)6 mm
Maximum line Ø(in)1/4 in
Fasteners (mm)6 RH mm
Fasteners (in)1/4 RH in
Mounting hole spacing (mm)94 mm
Mounting hole spacing (in)3 11/16 in
Cutout (mm)14 x 73 mm
Cutout (in)9/16 x 2 23/32 in
Maximum working load (kg)907 kg
Maximum working load (lb)2000 lb
Breaking load (kg)1814 kg
Breaking load (lb)4000 lb
Sheave Ø(in)2 in
Weight (g)163 g
Weight (oz)5.75 oz
Maximum wire Ø(in)3/16 in
Maximum wire Ø(mm)5 mm
Maximum line Ø(mm)6 mm
Maximum line Ø(in)1/4 in
Fasteners (mm)6 RH mm
Fasteners (in)1/4 RH in
Mounting hole spacing (mm)94 mm
Mounting hole spacing (in)3 11/16 in
Cutout (mm)14 x 73 mm
Cutout (in)9/16 x 2 23/32 in
Maximum working load (kg)907 kg
Maximum working load (lb)2000 lb
Breaking load (kg)1814 kg
Breaking load (lb)4000 lb
