Description

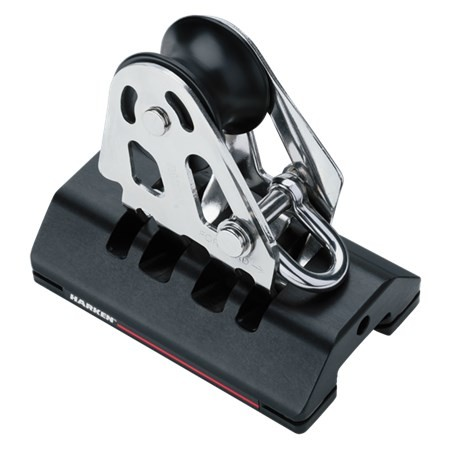

Use furling outhaul cars with in-mast or behind-the-mast furlers on boats up to 13.5 m (45 ft). Sheave carriers pivot side-to-side to accommodate changing lead angles. Systems have 2:1 purchase and ride on cars with Torlon ® ball bearings. A deadend outhaul shackle is included. Cars have axle-bearing sheaves. Torlon is a registered trademark of Solvay Advanced Polymers.
Sheave Ø(mm)64 mm
Sheave Ø(in)2 1/2 in
Length (mm)133 mm
Length (in)5 1/4 in
Width (mm)85 mm
Width (in)3 3/8 in
Weight (g)964 g
Weight (oz)34 oz
Maximum working load (kg)1361 kg
Maximum working load (lb)3000 lb
Maximum sail area - monohull (m ²)40 m ²
Maximum sail area - monohull (ft ²)425 ft ²
Use with track/railR32
Sheave Ø(in)2 1/2 in
Length (mm)133 mm
Length (in)5 1/4 in
Width (mm)85 mm
Width (in)3 3/8 in
Weight (g)964 g
Weight (oz)34 oz
Maximum working load (kg)1361 kg
Maximum working load (lb)3000 lb
Maximum sail area - monohull (m ²)40 m ²
Maximum sail area - monohull (ft ²)425 ft ²
Use with track/railR32
