Description

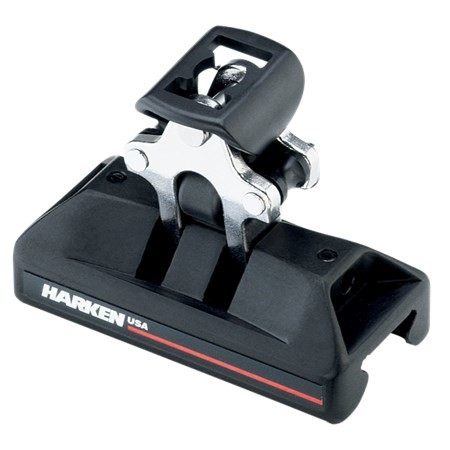

The CRX Roller Traveler carries almost double the load at half the weight of similarly sized traveler cars. Torlon ® rollers provide increased bearing contact over balls to handle higher loads. Captive bearings make cars easy to load and maintain. Torlon is a registered trademark of Solvay Advanced Polymers L.L.C.
Length (mm)127 mm
Length (in)5 in
Width (mm)64 mm
Width (in)2 1/2 in
Height (mm)86 mm
Height (in)3 3/8 in
Weight (g)624 g
Weight (oz)22 oz
Maximum working load (kg)2268 kg
Maximum working load (lb)5000 lb
Breaking load (kg)4535 kg
Breaking load (lb)10000 lb
Use with track/rail3079
Length (in)5 in
Width (mm)64 mm
Width (in)2 1/2 in
Height (mm)86 mm
Height (in)3 3/8 in
Weight (g)624 g
Weight (oz)22 oz
Maximum working load (kg)2268 kg
Maximum working load (lb)5000 lb
Breaking load (kg)4535 kg
Breaking load (lb)10000 lb
Use with track/rail3079
