Description

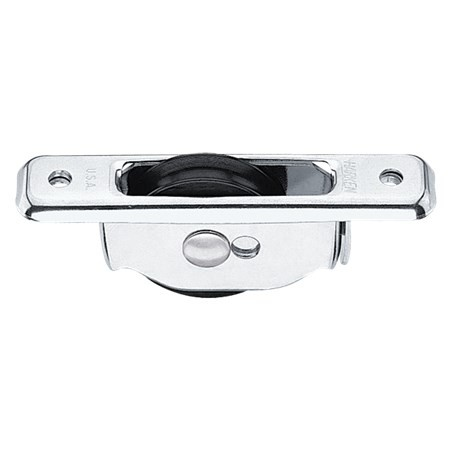

Lightweight, low-friction wire blocks carry wire halyards and high-strength control lines on boats of all sizes.
Sheave Ø(mm)38 mm
Sheave Ø(in)1 1/2 in
Weight (g)92 g
Weight (oz)3.25 oz
Maximum wire Ø(in)1/8 in
Maximum wire Ø(mm)3 mm
Maximum line Ø(mm)5 mm
Maximum line Ø(in)3/16 in
Fasteners (mm)5 RH mm
Fasteners (in)#10 RH in
Mounting hole spacing (mm)75 mm
Mounting hole spacing (in)2 15/16 in
Cutout (mm)13 x 59 mm
Cutout (in)17/32 x 2 5/16 in
Maximum working load (kg)680 kg
Maximum working load (lb)1500 lb
Breaking load (kg)1361 kg
Breaking load (lb)3000 lb
Sheave Ø(in)1 1/2 in
Weight (g)92 g
Weight (oz)3.25 oz
Maximum wire Ø(in)1/8 in
Maximum wire Ø(mm)3 mm
Maximum line Ø(mm)5 mm
Maximum line Ø(in)3/16 in
Fasteners (mm)5 RH mm
Fasteners (in)#10 RH in
Mounting hole spacing (mm)75 mm
Mounting hole spacing (in)2 15/16 in
Cutout (mm)13 x 59 mm
Cutout (in)17/32 x 2 5/16 in
Maximum working load (kg)680 kg
Maximum working load (lb)1500 lb
Breaking load (kg)1361 kg
Breaking load (lb)3000 lb
