Description

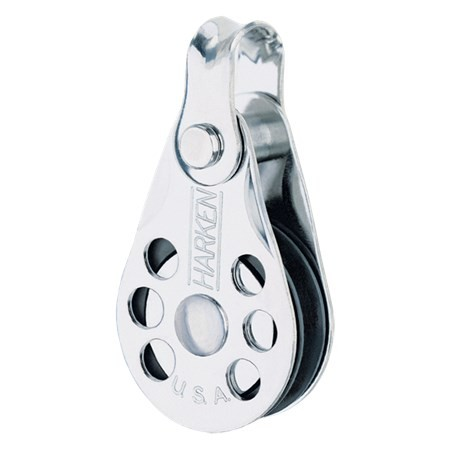

Lightweight, low-friction wire blocks carry wire halyards and high-strength control lines on boats of all sizes.
Sheave Ø(mm)38 mm
Sheave Ø(in)1 1/2 in
Weight (g)78 g
Weight (oz)2.75 oz
Shackle pin Ø(mm)6 mm
Shackle pin Ø(in)1/4 in
Maximum wire Ø(in) 1/8 in
Maximum wire Ø(mm)3 mm
Maximum line Ø(mm)5 mm
Maximum line Ø(in) 3/16 in
Maximum working load (kg)680 kg
Maximum working load (lb)1500 lb
Breaking load (kg)1361 kg
Breaking load (lb)3000 lb
Sheave Ø(in)1 1/2 in
Weight (g)78 g
Weight (oz)2.75 oz
Shackle pin Ø(mm)6 mm
Shackle pin Ø(in)1/4 in
Maximum wire Ø(in) 1/8 in
Maximum wire Ø(mm)3 mm
Maximum line Ø(mm)5 mm
Maximum line Ø(in) 3/16 in
Maximum working load (kg)680 kg
Maximum working load (lb)1500 lb
Breaking load (kg)1361 kg
Breaking load (lb)3000 lb
