Description

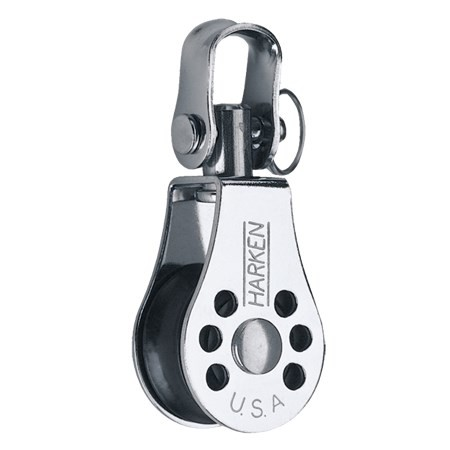

Low-friction Micro blocks are compact and lightweight. They are ideal for sailboards, smaller dinghies, and lightly loaded control lines on boats of all sizes.
Sheave Ø(mm)22 mm
Sheave Ø(in)7/8 in
Length (mm)60 mm
Length (in)2 3/8 in
Weight (g)28 g
Weight (oz)1 oz
Shackle pin Ø(mm)4 mm
Shackle pin Ø(in)5/32 in
Maximum line Ø(mm)6 mm
Maximum line Ø(in) 1/4 in
Maximum working load (kg)91 kg
Maximum working load (lb)200 lb
Breaking load (kg)544 kg
Breaking load (lb)1200 lb
Sheave Ø(in)7/8 in
Length (mm)60 mm
Length (in)2 3/8 in
Weight (g)28 g
Weight (oz)1 oz
Shackle pin Ø(mm)4 mm
Shackle pin Ø(in)5/32 in
Maximum line Ø(mm)6 mm
Maximum line Ø(in) 1/4 in
Maximum working load (kg)91 kg
Maximum working load (lb)200 lb
Breaking load (kg)544 kg
Breaking load (lb)1200 lb
