Description

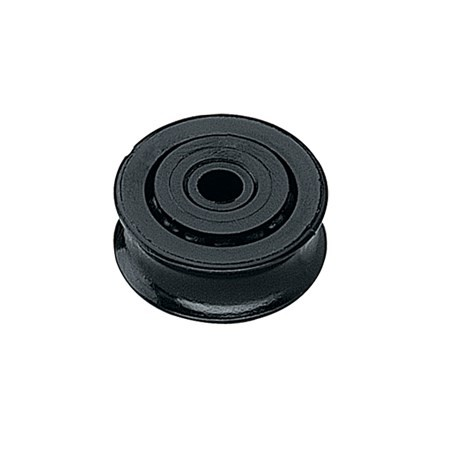

Self-contained sheaves are designed for sailors to use in custom applications. The Micro, Bullet, and Big Bullet sheaves are Delrin ® with Delrin ® ball bearings. They are scored for rope. Delrin ® is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates.
Sheave Ø(mm)22 mm
Sheave Ø(in)7/8 in
Width (mm)10 mm
Width (in) 13/32 in
Weight (g)3 g
Weight (oz)0.1 oz
Center pin Ø(mm)4.75 mm
Center pin Ø(in) 3/16 in
Maximum line Ø(mm)6 mm
Maximum line Ø(in)1/4 in
Maximum working load (kg)91 kg
Maximum working load (lb)200 lb
Sheave Ø(in)7/8 in
Width (mm)10 mm
Width (in) 13/32 in
Weight (g)3 g
Weight (oz)0.1 oz
Center pin Ø(mm)4.75 mm
Center pin Ø(in) 3/16 in
Maximum line Ø(mm)6 mm
Maximum line Ø(in)1/4 in
Maximum working load (kg)91 kg
Maximum working load (lb)200 lb
